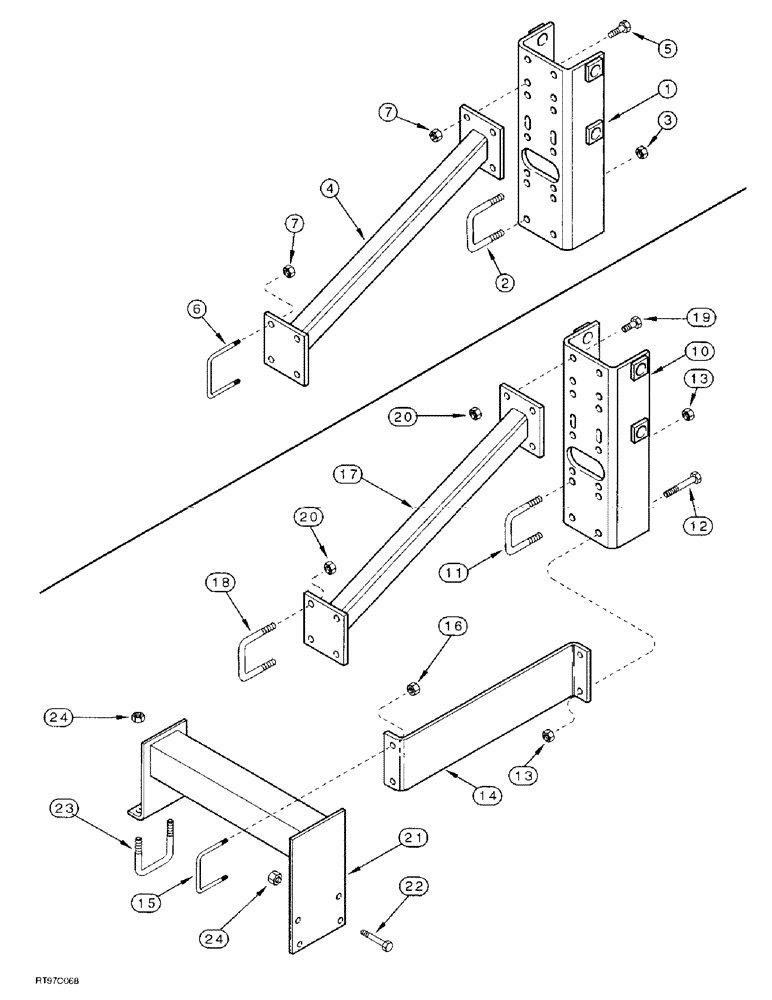

Запчасти Case IH 4300 (9-084) - CASTER WHEEL MOUNTING (09) - CHASSIS/ATTACHMENTS

1

226538A1

BRACKET

- caster wheel mounting, main frame

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, main frame

4шт.

3

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, main frame

8шт.

4

138982A1

BRACE

- caster wheel, main frame

1шт.

5

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, main frame

8шт.

6

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, main frame

4шт.

7

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, main frame

16шт.

10

226538A1

BRACKET

- caster wheel mounting, 12 ft wing, vertical fold

2шт.

11

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, 12 ft wing, vertical fold

2шт.

12

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch, 12 ft wing, vertical fold

4шт.

13

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 12 ft wing, vertical fold

8шт.

14

142350A1

BRACE

- front extension, 12 ft wing, vertical fold

2шт.

15

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, 12 ft wing, vertical fold

2шт.

16

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 12 ft wing, vertical fold

4шт.

17

138982A1

BRACE

- caster wheel, 12 ft wing, vertical fold

2шт.

18

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, 12 ft wing, vertical fold

4шт.

19

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, 12 ft wing, vertical fold

8шт.

20

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 12 ft wing, vertical fold

16шт.

21

138985A1

CASING

TOWER - caster wheel mounting, 12 ft wing, vertical fold

2шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

12 ft wing, Vertical fold Hex, 5/8"-11 x 3 1/2", G5

8шт.

23

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, 12 ft wing, vertical fold

2шт.

24

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, 12 ft wing, vertical fold

12шт.
