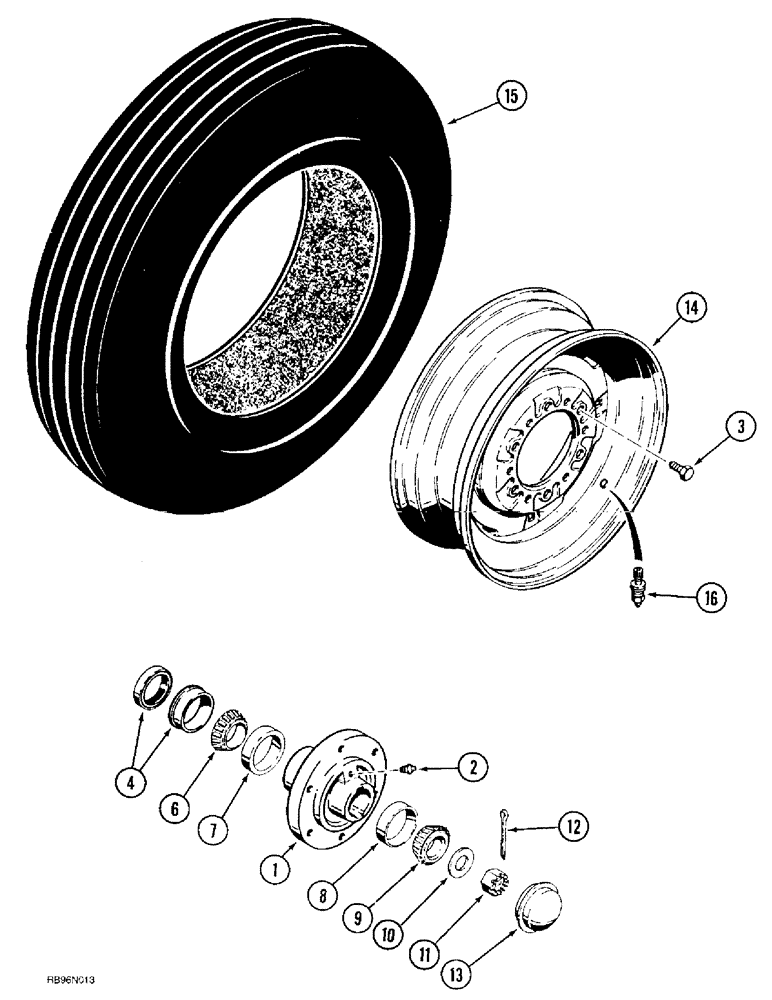

Запчасти Case IH 4300 (9-082) - WHEELS AND HUBS, CASTER WHEEL (09) - CHASSIS/ATTACHMENTS

1

606468R21

HUB

ASSEMBLY - wheel, 6 bolt

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

3

277538A1

BOLT,1/2" - 20 x 1.42"

- hex conical, 1/2 NF x 1-5/32 inch

1шт.

4

606556R91

OIL SEAL

SEAL - oil, with sleeve

1шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID

1шт.

7

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

8

651817R1

BEARING CUP

CUP - tapered roller bearing

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

1шт.

10

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

1шт.

11

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted, special, 7/8 inch NC

1шт.

12

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

13

663906R1

CAP

- wheel hub

1шт.

14

A57879

RIM

WHEEL - 15 x 8 inch

1шт.

15

REF

INSTRUCTION

TIRE - 9.5L - 15, 8 ply rating, purchase locally

1шт.

15

REF

INSTRUCTION

TIRE - 11L - 15, 12 ply rating, purchase locally

1шт.

16

810769C1

VALVE

- inflation

1шт.
