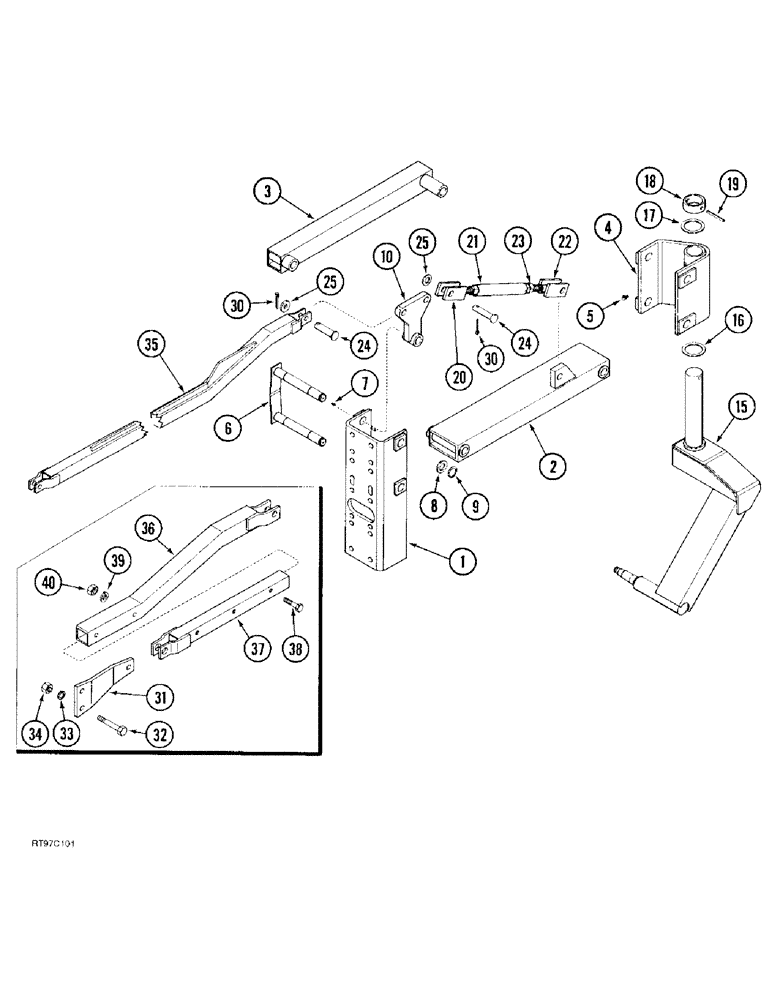

Запчасти Case IH 4300 (9-080) - CASTER WHEEL, USED WITH FLOATING HITCH (09) - CHASSIS/ATTACHMENTS

1

226538A1

BRACKET

- caster wheel mounting

1шт.

2

138989A2

TUBE,730 mm Length

LINK - lower, left-hand (Shown)

1шт.

2

252924A1

TUBE,730 mm Length

LINK - lower, right-hand

1шт.

3

1969307C1

TUBE ASSY.

LINK - upper

1шт.

4

1969304C2

CHANNEL

- front pivot

1шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

2шт.

6

259392A1

PIN ASSY.

PIN - link

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

8

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

2шт.

9

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

10

139629A1

PIVOT

- push rod

1шт.

15

1969330C1

AXLE

- caster

1шт.

16

61625C1

WASHER

- flat, 2-17/32 x 3-1/4 x 7/64 inch

1шт.

17

495-81231

WASHER,2 17/32" x 3 1/4" x .060"

- flat, 2-17/32 x 3-1/4 x 1/16 inch

1шт.

18

251114A1

BUSHING

COLLAR - locking

1шт.

19

438-33256

PIN,1/2" x 3 1/2", Coiled

1шт.

20

1344919C2

CLEVIS

YOKE - turnbuckle, left-hand thread

1шт.

21

480249R1

TRUSS ROD

TURNBUCKLE - landing yoke

1шт.

22

1344920C2

CLEVIS

YOKE - turnbuckle, right-hand thread

1шт.

23

425-1016

NUT,1"-8, G5

1шт.

24

439-51644

HEADED PIN,1" x 2 3/4", G5

PIN - headed, 1 x 2-3/4 inch

4шт.

25

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

4шт.

30

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

31

139000A2

BAR

- pusher (Wing frame caster wheel only)

1шт.

32

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

- hex, 7/8 NC x 3-1/4 inch, grade 8

2шт.

33

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

34

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, grade 8

2шт.

35

140417A3

ROD

TUBE - pusher (Main frame)

1шт.

36

142318A2

ROD ASSY.

TUBE - pusher, front (Wing frame)

1шт.

37

142316A2

ROD ASSY.

TUBE - pusher, rear (Wing frame)

1шт.

38

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

39

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

40

425-1010

NUT,5/8"-11, G5

2шт.
