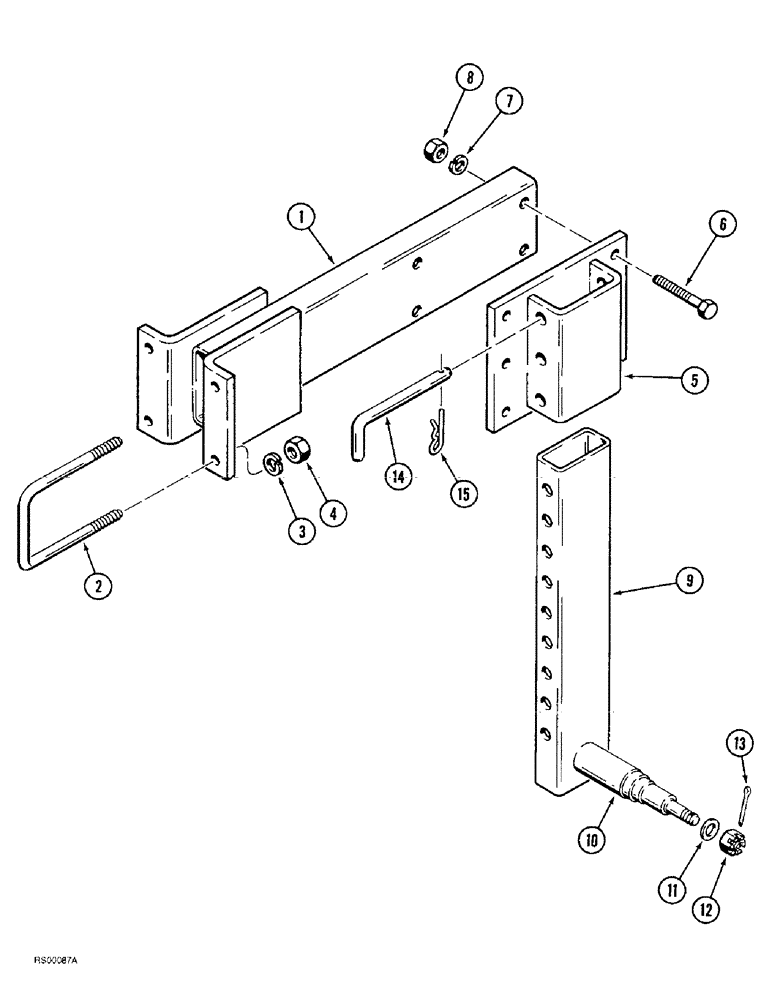

Запчасти Case IH 4300 (9-076) - GAUGE WHEEL, VERTICAL FOLD AND DOUBLE FOLD (09) - CHASSIS/ATTACHMENTS

103562A1

ATTACHMENT

- guage wheel

1шт.

1

812341C1

TUBE,645 mm Length

- gauge wheel mounting

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

1284351C1

SUPPORT

BRACKET - axle mounting

2шт.

6

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

9

811542C92

AXLE

ASSEMBLY - gauge wheel

2шт.

10

96131C91

SPINDLE

ASSEMBLY - repair

1шт.

11

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

12

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

13

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

14

811951C1

PIN

- retaining

2шт.

15

1978739C1

PIN

- hair

2шт.
