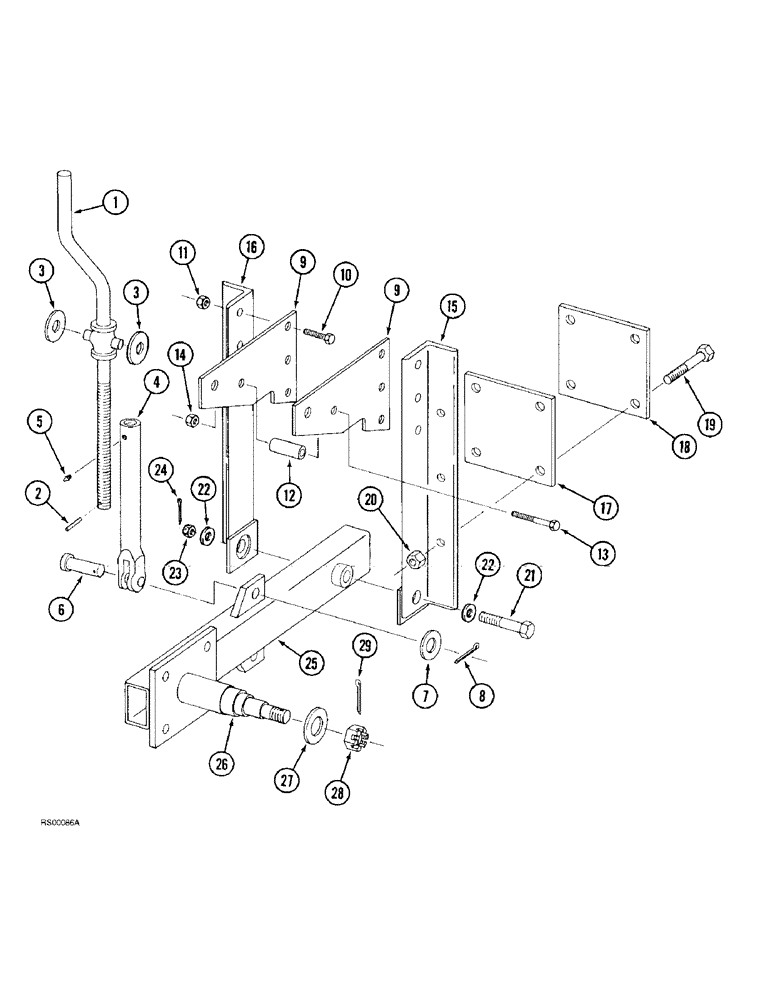

Запчасти Case IH 4300 (9-074) - GAUGE WHEEL, CRANK ADJUSTABLE (09) - CHASSIS/ATTACHMENTS

179412A2

ATTACHMENT - crank adjustable gauge wheel

1шт.

1

599815R1

CRANK

- gauge wheel adjusting

2шт.

2

438-31012

PIN,5/32" x 3/4", Coiled

2шт.

3

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

4шт.

4

458520R1

THREADED TIE-ROD

YOKE - adjusting crank

2шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

6

439-51236

HEADED PIN,19.05mm OD x 57.15mm L

PIN - headed, 3/4 x 2-1/4 inch

2шт.

7

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

9

599814R2

BAR

PLATE - adjusting crank guide

4шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

12

517920R1

SPACER,1/2" Pipe x 2"

- pipe, 1/2 ID x 2 inch

2шт.

13

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

599807R1

ANGLE

BRACKET - gauge wheel mounting, left-hand

2шт.

16

599808R1

ANGLE

BRACKET - gauge wheel mounting, right-hand

2шт.

17

599812R1

BAR

PLATE - bracket mounting, inner

2шт.

18

599813R1

BAR

PLATE - bracket mounting, outer

2шт.

19

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

8шт.

20

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

21

113-2729

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

22

495-81045

WASHER,25/32" x 1 3/4" x .179"

- flat, 25/32 x 1-3/4 x 11/64 inch

4шт.

23

425-1212

SLOTTED NUT,3/4"-10, G5

NUT - hex, slotted, 3/4 inch NC

2шт.

24

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

2шт.

25

599819R2

AXLE HOUSING

AXLE ASSEMBLY - gauge wheel

2шт.

26

599823R11

SPINDLE

ASSEMBLY - gauge wheel axle

1шт.

27

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

28

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

29

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.
