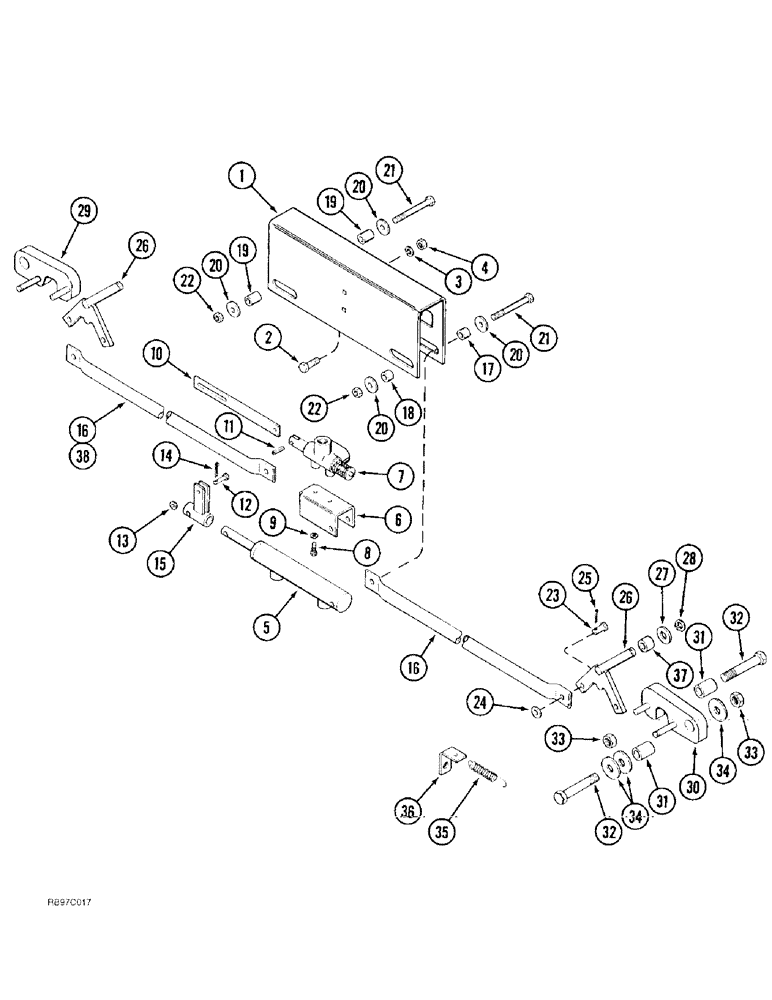

Запчасти Case IH 4300 (9-070) - AUTOMATIC WING TRANSPORT LOCK, LOW TRANSPORT, DOUBLE FOLD, STD TRANSPORT, VERTICAL AND DOUBLE FOLD (09) - CHASSIS/ATTACHMENTS

1

177082A1

LARGE PLATE

CHANNEL - cylinder mounting

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

1286364C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 38 (1-1/2) ID x 102 mm (4 inch) stroke (See Page 8-59)

1шт.

6

187286A1

LARGE PLATE

SUPPORT - valve

1шт.

7

187904A1

VALVE

- transport lockout

1шт.

8

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

187285A1

BAR

- connecting

1шт.

11

21997R1

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

1шт.

12

439-1416

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch, grade 2

1шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

14

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

15

187303A1

BAR

- connecting

1шт.

16

177093A1

TUBE,1.05" OD

- connecting

2шт.

17

622535R1

SPACER,1/2" X-Strng Pipe x 7/16"

1шт.

18

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 ID x 1/2 inch

1шт.

19

M22613

SPACER,1/2" X-Strng Pipe x 1"

- pipe, 1/2 ID x 1 inch

2шт.

20

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

21

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

2шт.

22

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

23

439-1816

HEADED PIN,1/2" x 1"

PIN - headed, 1/2 x 1 inch, grade 2

2шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

25

432-1216

COTTER PIN,3/16" x 1"

2шт.

26

177094A1

LATCH ASSY.

LATCH - trip release

2шт.

27

495-11081

WASHER,3/4", SAE

2шт.

28

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

29

177288A1

LATCH ASSY.

LATCH - wing lock, left-hand

1шт.

30

177290A1

LATCH ASSY.

LATCH - wing lock, right-hand

1шт.

31

109070R1

SPACER,3/4" Pipe x 1 1/2"

- pipe, 3/4 ID x 1-1/2 inch

4шт.

32

426-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

- hex, 3/4 NC x 4 inch, grade 8

4шт.

33

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

4шт.

34

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

6шт.

35

842482C1

SPRING

- extension

2шт.

36

182432A1

BRACKET

- spring (6 foot and 9 foot primary wing only)

2шт.

37

PO11463

SPACER,3/4" Pipe x 11/16"

- 3/4 X 21/32 inch

2шт.

38

256374A1

TUBE,1.05" OD, 1551.6 mm Length

- connecting (Used with hitch for Condord tank)

1шт.
