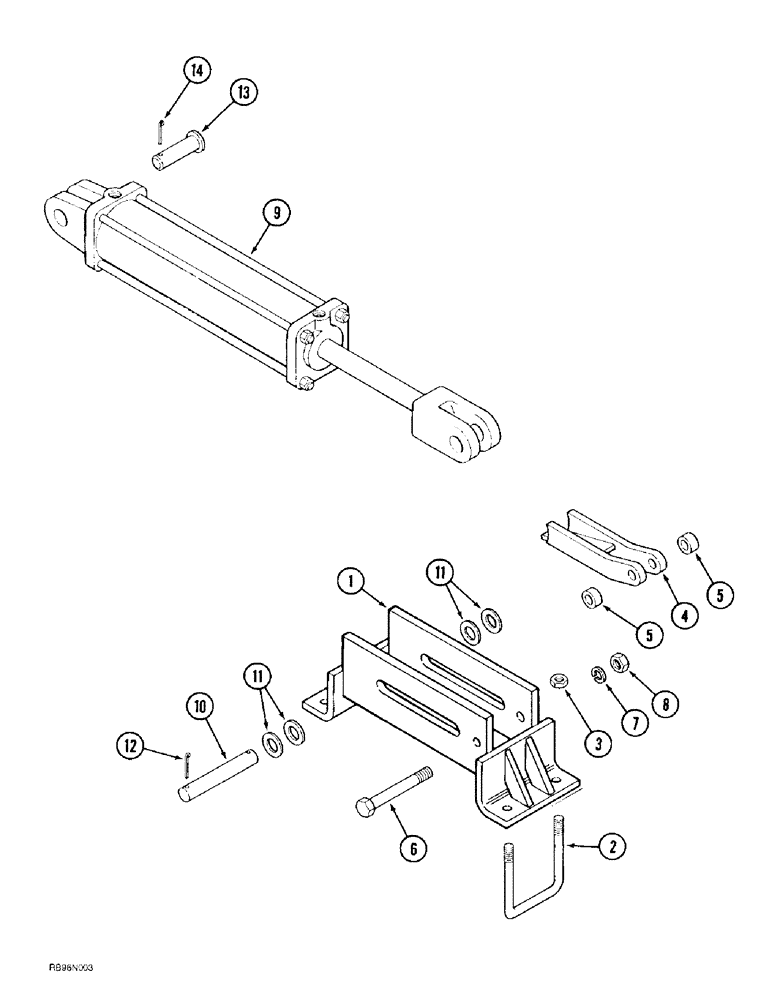

Запчасти Case IH 4300 (9-052) - PRIMARY WING LIFT CYLINDER MOUNTING, STANDARD TRANSPORT, DOUBLE FOLD (09) - CHASSIS/ATTACHMENTS

1

141090A2

SUPPORT

- wing lift (3 foot secondary wing)

2шт.

1

141090A2

SUPPORT

- wing lift (6 foot secondary wing)

4шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

1шт.

3

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

4

187351A1

LEVER

- wing unfold (3 foot secondary wing)

2шт.

4

187351A1

LEVER

- wing unfold (6 foot secondary wing)

4шт.

5

PO11463

SPACER,3/4" Pipe x 11/16"

- 3/4 X 21/32 inch (if used)

1шт.

6

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

1шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

8

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

9

224795C92

CYLINDER

ASSEMBLY - 102 (4) ID x 864 mm (34 inch) stroke (3 foot secondary wing)(See Page 8-55)

2шт.

9

224795C92

CYLINDER

ASSEMBLY - 102 (4) ID x 864 mm (34 inch) stroke (6 foot secondary wing)(See Page 8-55)

4шт.

10

813192C1

PIN

- pivot

1шт.

11

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

1шт.

12

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

13

810751C1

PIN

- headed, 1 x 3-1/2 inch

1шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.
