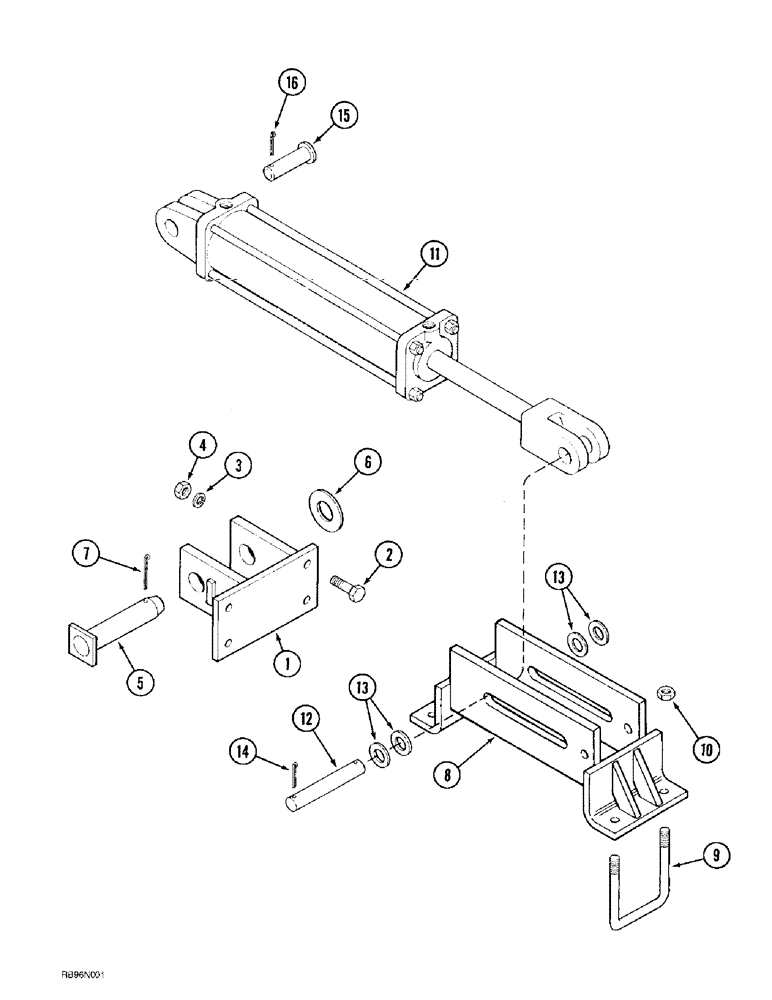

Запчасти Case IH 4300 (9-046) - FRONT & REAR WING LIFT HINGES & CYLINDER MOUNTING, STANDARD TRANSPORT VERTICAL FOLD, 6 & 9 FT WING (09) - CHASSIS/ATTACHMENTS

1

137148A1

HINGE

- wing lift

4шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

16шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

4

425-1010

NUT,5/8"-11, G5

16шт.

5

811965C2

PIN

- hinge pivot

4шт.

6

495-11162

WASHER,1 1/2" x 3" x .165"

- flat, 1-5/8 x 3 x 5/32 inch

4шт.

7

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

4шт.

8

141090A2

SUPPORT

- wing lift

2шт.

9

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

10

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.

11

1285753C94

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 864 mm (34 inch) stroke (See Page 8-53)

2шт.

12

813192C1

PIN

- pivot

2шт.

13

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

8шт.

14

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

4шт.

15

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.
