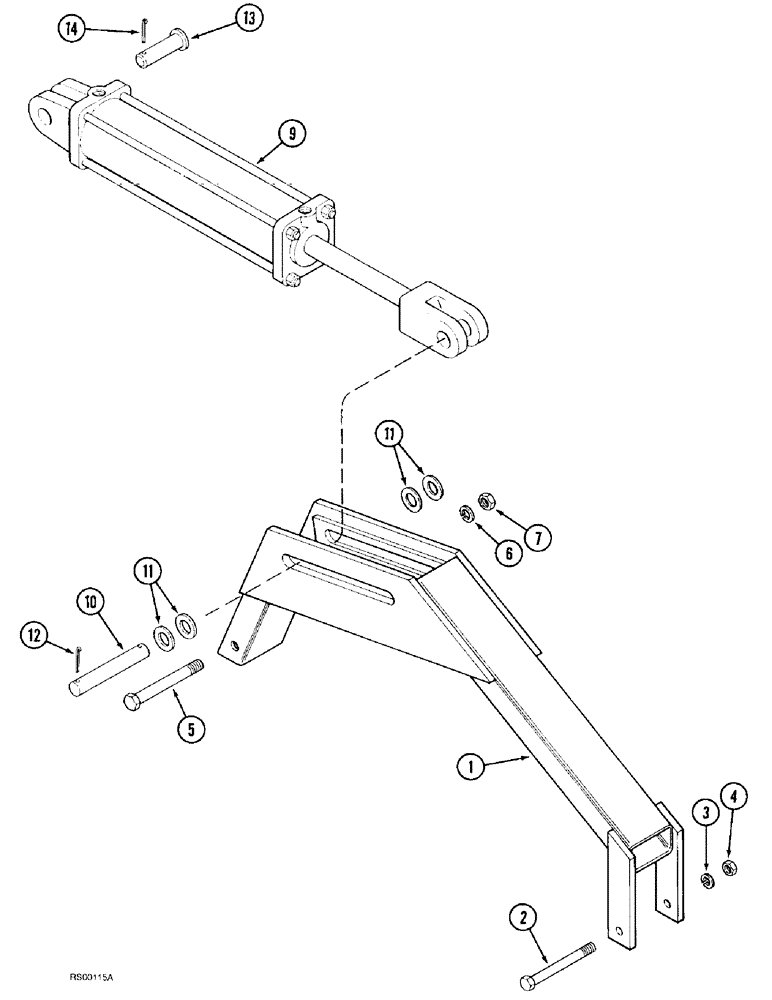

Запчасти Case IH 4300 (9-044) - WING LIFT CYLINDER MOUNTING, NARROW TRANSPORT, VERTICAL FOLD, 12 FOOT WING (09) - CHASSIS/ATTACHMENTS

1

141086A1

SUPPORT

- wing lift

2шт.

2

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

2шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

7

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

9

1954089C1

CYLINDER

ASSEMBLY - 114 (4-1/2) ID x 864 mm (34 inch) stroke (See Page 8-57)

2шт.

10

813192C1

PIN

- pivot

2шт.

11

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

4шт.

12

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

13

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.
