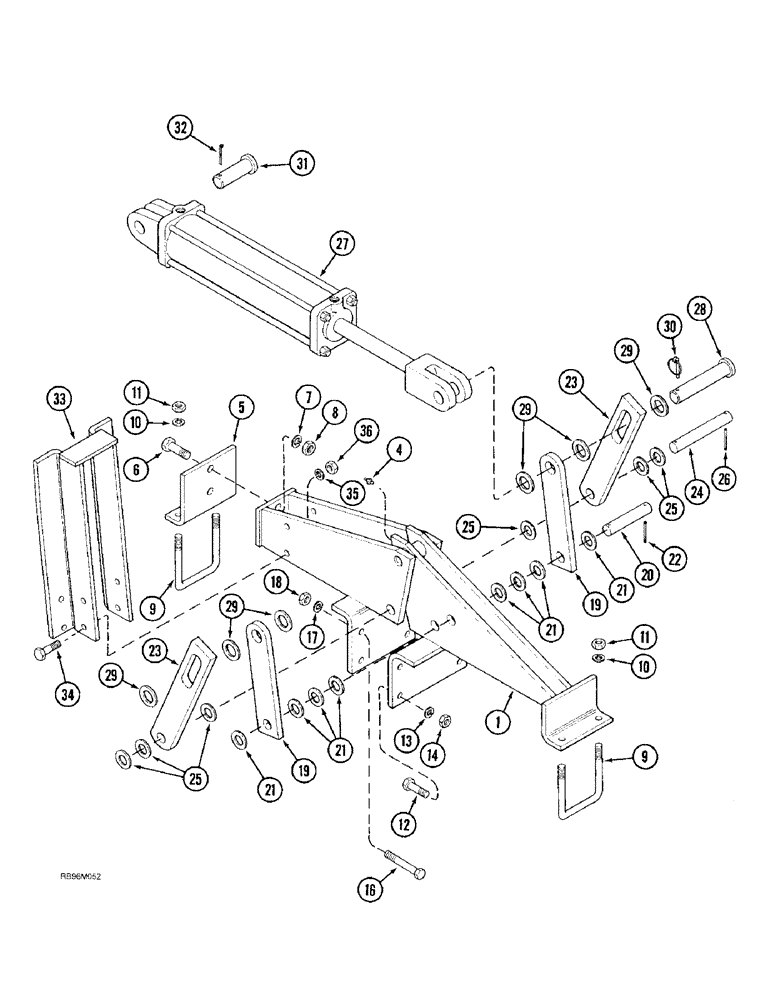

Запчасти Case IH 4300 (9-040) - REAR WING LIFT HINGE AND CYLINDER MOUNTING, FLAT FOLD, FLOATING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
142361A1
HINGE
- wing lift, rear
2шт.
4
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
2шт.
5
140991A1
BAR
ANGLE - hinge support
2шт.
7
492-11075
LOCK WASHER,3/4"
3/4"
8шт.
8
429-1012
NUT,3/4"-10, G8
- hex, 3/4 inch NC, grade 8
8шт.
9
608294R1
U-BOLT,U, 5/8" - 11 x 134mm
- 5/8 inch NC
4шт.
10
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
11
425-1010
NUT,5/8"-11, G5
8шт.
12
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
- hex, 5/8 NC x 2 inch
8шт.
13
425-1010
NUT,5/8"-11, G5
8шт.
14
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
16
413-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
- hex, 5/8 NC x 3-3/4 inch
8шт.
17
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
18
425-1010
NUT,5/8"-11, G5
8шт.
19
186864A1
BAR
LINK - outer hinge
4шт.
20
854527C1
PIN
- pivot
2шт.
21
495-81074
WASHER,1 1/32" x 1 3/4" x .120"
- flat, 1-1/32 x 1-3/4 x 1/8"
16шт.
22
438-31636
PIN,1/4" x 2 1/4", Coiled
4шт.
23
186863A1
BAR
- floating
4шт.
24
811962C1
PIN
- pivot
2шт.
25
495-81074
WASHER,1 1/32" x 1 3/4" x .120"
- flat, 1-1/32 x 1-3/4 x 1/8"
12шт.
26
438-31636
PIN,1/4" x 2 1/4", Coiled
4шт.
27
1272150C91
CYLINDER
ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke (See Page 8-51)
2шт.
28
427-20625
CLEVIS PIN,31.75mm OD x 158.75mm L
PIN - clevis, 1-1/4 x 6-1/4 inch, hardened
2шт.
29
495-81203
WASHER,1 9/32" x 2" x .120"
- flat, 1-9/32 x 2 x 1/8 inch
12шт.
30
A30338
PIN
- lock
2шт.
31
427-20325
CLEVIS PIN,1 1/4" x 3 1/4"
PIN - clevis, 1-1/4 x 3-1/4 inch, hardened
2шт.
32
432-1632
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
2шт.
33
183133A2
STAND
SUPPORT - wing stop
2шт.
34
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
- hex, 5/8 NC x 2 inch
8шт.
35
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
36
425-1010
NUT,5/8"-11, G5
8шт.
Выбрано товаров: 33
