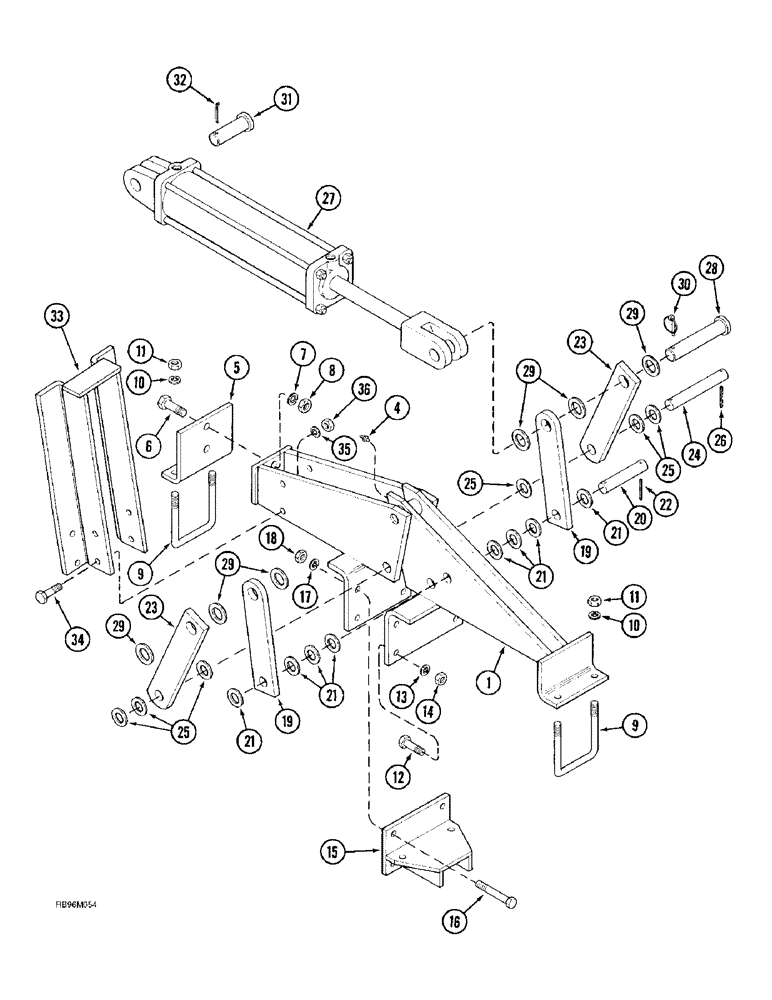

Запчасти Case IH 4300 (9-036) - REAR WING LIFT HINGE AND CYLINDER MOUNTING, FLAT FOLD, RIGID (09) - CHASSIS/ATTACHMENTS

1

142361A1

HINGE

- wing lift, rear

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

5

140991A1

BAR

ANGLE - hinge support

2шт.

6

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

8

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

8шт.

9

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

425-1010

NUT,5/8"-11, G5

8шт.

12

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

13

425-1010

NUT,5/8"-11, G5

8шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

15

142370A1

STOP

- rigid wing

2шт.

16

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

8шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

18

425-1010

NUT,5/8"-11, G5

8шт.

19

186864A1

BAR

LINK - outer hinge

4шт.

20

854527C1

PIN

- pivot

2шт.

21

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

16шт.

22

438-31636

PIN,1/4" x 2 1/4", Coiled

4шт.

23

189248A1

BAR

- rigid

4шт.

24

811962C1

PIN

- pivot

2шт.

25

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

12шт.

26

438-31636

PIN,1/4" x 2 1/4", Coiled

4шт.

27

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke (If used)(See Page 8-49)

2шт.

27

1272149C92R

REMAN-HYD CYLINDER

4300 CASE IH FIELD CULTIVATOR, ASSEMBLY

2шт.

27

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

27

1272150C91

CYLINDER

ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke (If used)(See Page 8-51)

2шт.

28

427-20625

CLEVIS PIN,31.75mm OD x 158.75mm L

PIN - clevis, 1-1/4 x 6-1/4 inch, hardened

2шт.

29

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/8 inch

12шт.

30

A30338

PIN

- lock

2шт.

31

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch, hardened

2шт.

32

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

33

183133A2

STAND

SUPPORT - wing stop

2шт.

34

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

35

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

36

425-1010

NUT,5/8"-11, G5

8шт.
