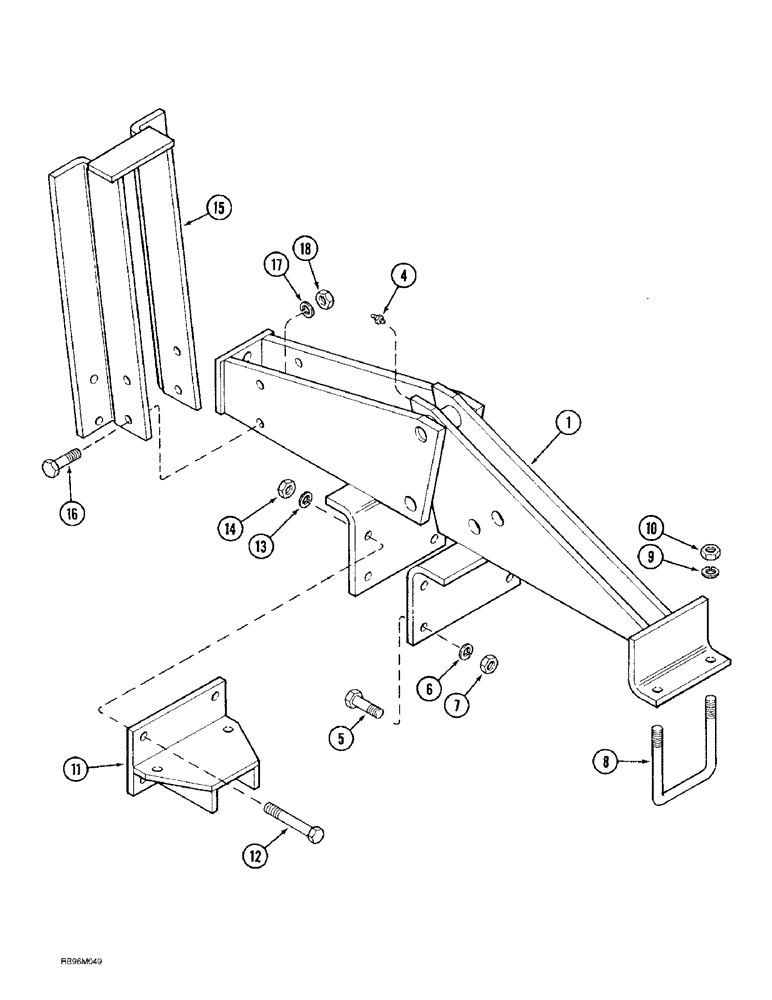

Запчасти Case IH 4300 (9-034) - FRONT WING LIFT HINGE, FLAT FOLD, RIGID (09) - CHASSIS/ATTACHMENTS

1

142361A1

HINGE

- wing lift, front

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

425-1010

NUT,5/8"-11, G5

8шт.

8

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

2шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

142370A1

STOP

- rigid wing

2шт.

12

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

8шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

425-1010

NUT,5/8"-11, G5

8шт.

15

183133A2

STAND

SUPPORT - wing stop (If used)

2шт.

16

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

18

425-1010

NUT,5/8"-11, G5

8шт.
