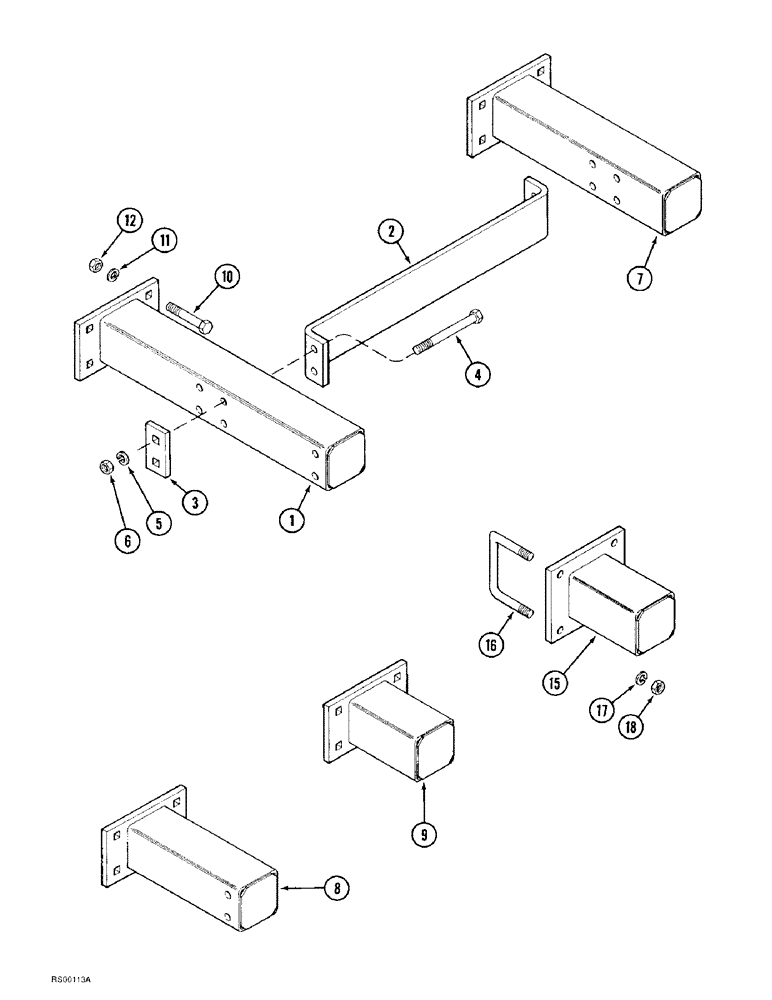

Запчасти Case IH 4300 (9-032) - WING FRAME EXTENSIONS (09) - CHASSIS/ATTACHMENTS

1

91386C1

EXTENSION

- frame, 24 inch (610 mm) long

1шт.

2

608338R1

STRAP

BRACE - frame extension

1шт.

3

608339R1

BLOCK

BRACKET - brace mounting

1шт.

4

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

425-1010

NUT,5/8"-11, G5

1шт.

7

193296A1

TUBE

EXTENSION - frame, 18 inch (457 mm) long

1шт.

8

91384C1

TUBE

EXTENSION - frame, 12 inch (305 mm) long

1шт.

9

193297A1

SHANK

EXTENSION - frame, 7 inch (178 mm) long

1шт.

10

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

425-1010

NUT,5/8"-11, G5

1шт.

15

142321A1

EXTENSION

- stub, clamp on

1шт.

16

817740C1

U-BOLT

- 5/8 inch NC

1шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

425-1010

NUT,5/8"-11, G5

1шт.
