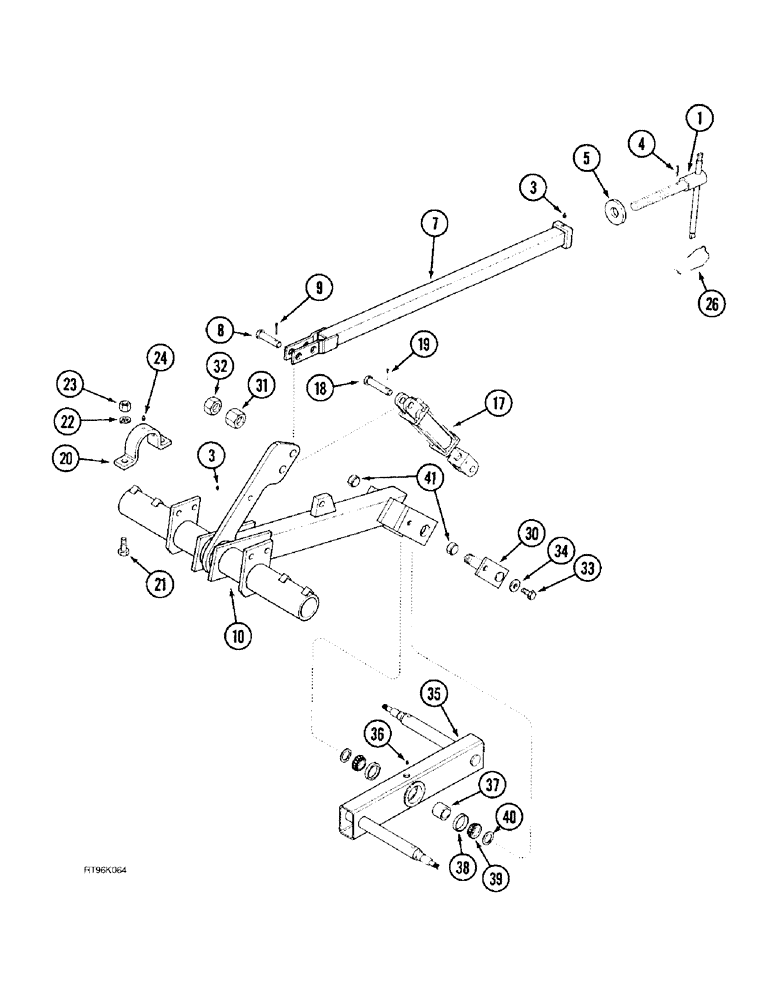

Запчасти Case IH 4300 (9-026) - 9 FOOT WING FRAME, AXLES AND DEPTH CONTROL (09) - CHASSIS/ATTACHMENTS

1

1284398C3

STUD

- truss rod

2шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

6шт.

4

438-32432

PIN,9.53mm OD x 50.8mm L

2шт.

5

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/8 inch

2шт.

7

141097A1

ROD ASSY.

TUBE - truss rod

2шт.

8

439-51644

HEADED PIN,1" x 2 3/4", G5

PIN - headed, 1 x 2-3/4 inch

2шт.

9

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

10

138998A2

HYD ROCKSHAFT

ROCKSHAFT - depth control (Includes Ref. 41)

2шт.

17

1282328C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 95 (3-3/4) ID x 203 mm (8 inch) stroke (See Page 8-45)

2шт.

17

87423766R

REMAN-HYD CYLINDER

CYLINDER ASSEMBLY - 95 (3-3/4) ID x 203 mm (8 inch) stroke (See Page 8-45)

2шт.

17

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

18

810751C1

PIN

- headed, 1 x 3-1/2 inch

4шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

20

97786C2

STRAP

CLAMP - rockshaft

4шт.

If you need a round head square neck bolt for this clamp, you could use 416-1236 (.75" - 10 X 2.25" grd 8).

1шт.

21

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

8шт.

22

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

23

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

8шт.

24

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

4шт.

26

1973010C1

RETAINER

- spring

2шт.

30

103069A2

PIN

- pivot

2шт.

31

231-41124

LOCK NUT,1 1/2"-6, GB

NUT - hex, self-locking, 1-1/2 inch NC

2шт.

32

131-149

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF

2шт.

33

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

- hex, 3/4 NC x 1 inch

2шт.

34

495-11081

WASHER,3/4", SAE

2шт.

35

186217A1

TUBE ASSY.,584 mm Length

AXLE - wing frame

2шт.

36

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

37

107921A2

TUBE

SPACER - 1-11/16 inch long

2шт.

38

453012R1

BEARING CUP

CUP - tapered roller bearing

2шт.

39

8050528

ROLLER BEARING

CONE - tapered roller bearing

2шт.

40

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

SPACER

2шт.

41

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

- 1-1/2 ID x 1-3/4 OD x 3/4 inch

4шт.
