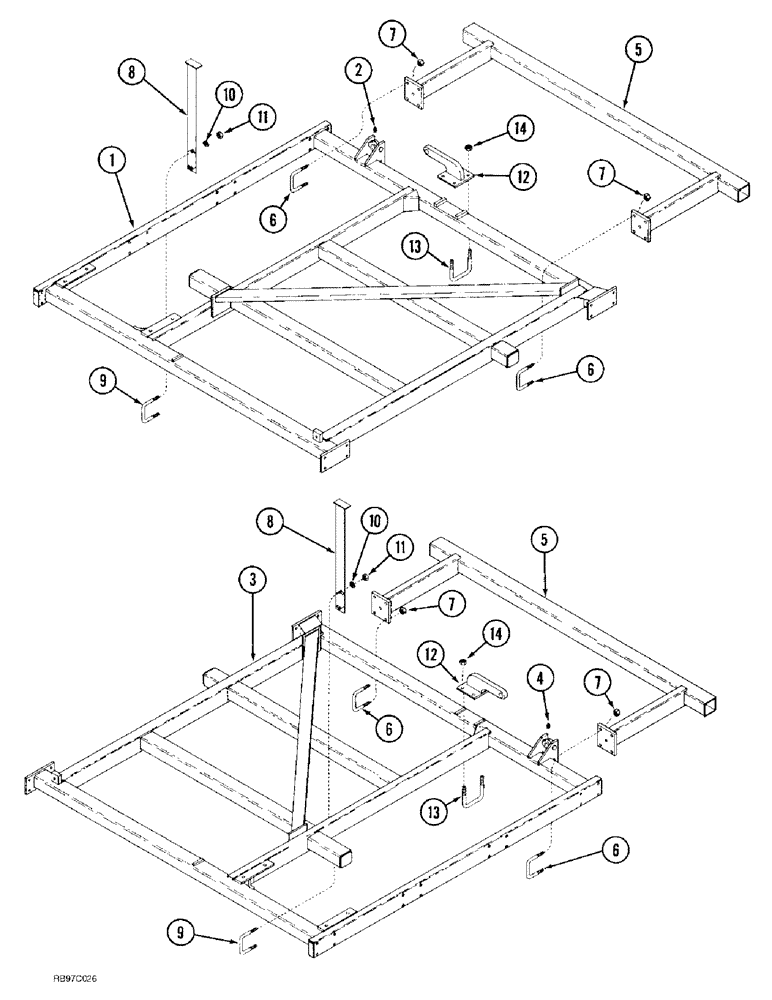

Запчасти Case IH 4300 (9-020) - 9 FOOT WING FRAME (09) - CHASSIS/ATTACHMENTS

1

231698A4

FUNNEL

FRAME - wing, 9 foot, left hand

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

3

231699A4

FUNNEL

FRAME - wing, 9 foot, right hand

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

138979A1

BEAM ASSY.

EXTENSION - wing, front

2шт.

6

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

8шт.

7

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

16шт.

8

248486A1

SUPPORT

- secondary wing (If used)

2шт.

9

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

425-1010

NUT,5/8"-11, G5

4шт.

12

143008A1

ANCHOR

- cylinder (If used)

2шт.

13

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

14

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.
