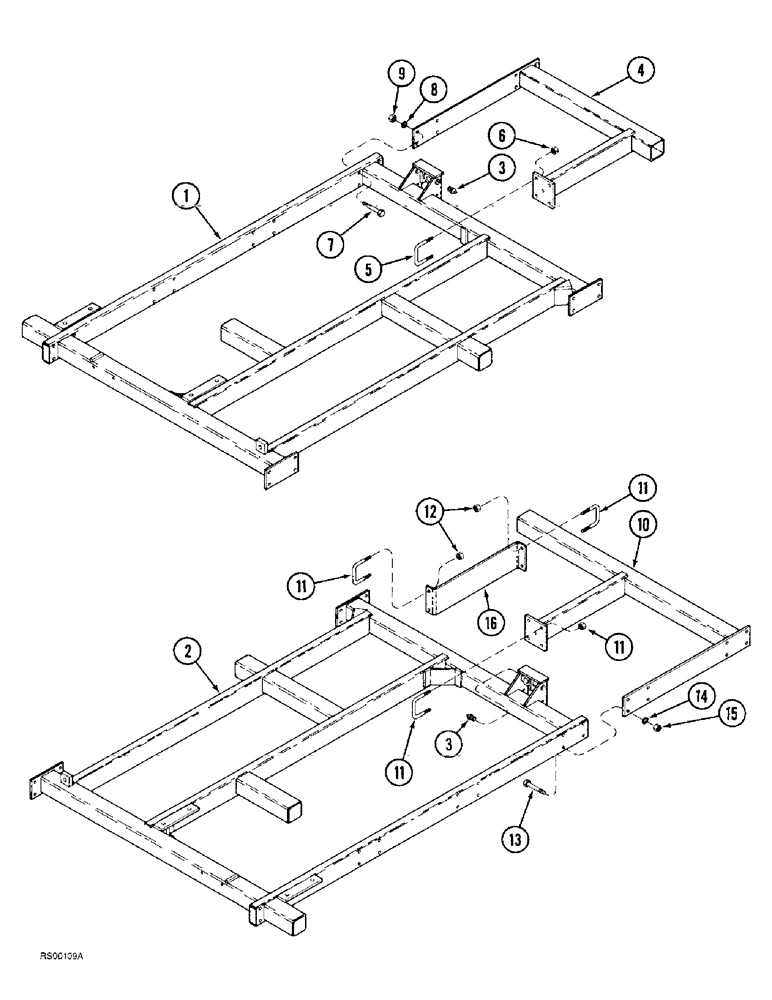

Запчасти Case IH 4300 (9-018) - 6 FOOT WING FRAME (09) - CHASSIS/ATTACHMENTS

1

138993A2

FUNNEL

FRAME - wing, 6 foot, left- hand

1шт.

2

138994A2

FUNNEL

FRAME - wing, 6 foot, right- hand

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

4

137159A1

BEAM ASSY.

EXTENSION - wing, front, 39-3/8 inch (1000 mm) long (If used)

2шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

8шт.

6

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

16шт.

7

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

8шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

9

425-1010

NUT,5/8"-11, G5

8шт.

10

141077A1

BEAM ASSY.

EXTENSION - wing, front, 63-7/8 inch (1622 mm) long (If used)

2шт.

11

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

12шт.

12

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

24шт.

13

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

8шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

15

425-1010

NUT,5/8"-11, G5

8шт.

16

142350A1

BRACE

- front extension

2шт.
