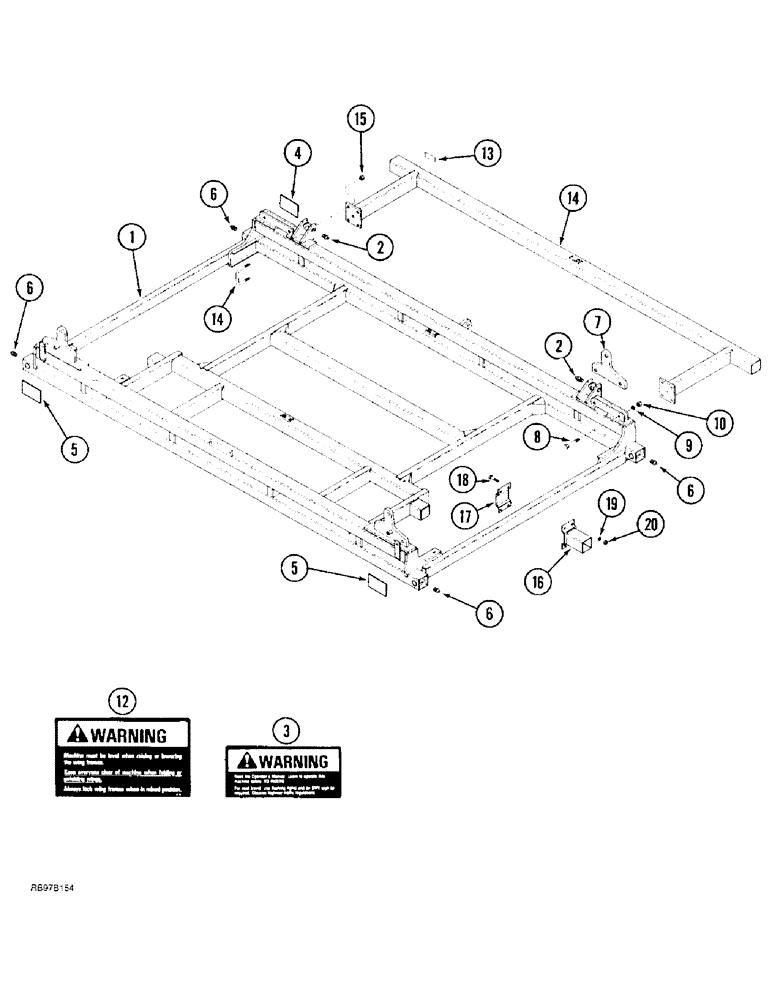

Запчасти Case IH 4300 (9-008) - MAIN FRAME & FRONT EXTENSION, LOW TRANSPORT, DOUBLE FOLD, STANDARD TRANSPORT, VERTICAL & DOUBLE FOLD (09) - CHASSIS/ATTACHMENTS

1

133831A2

FUNNEL

FRAME ASSEMBLY - main, 13 foot wide

1шт.

2

810170C2

PRODUCT GRAPHIC

DECAL - Warning, machine must be level

2шт.

3

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual

1шт.

4

1284365C2

REFLECTOR

- amber

1шт.

5

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

6шт.

7

141631A1

ANCHOR

- cylinder (If used)

2шт.

8

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

10

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

11

140415A1

BEAM ASSY.

EXTENSION ASSEMBLY - frame, front

1шт.

12

810170C2

PRODUCT GRAPHIC

DECAL - Warning, machine must be level

2шт.

13

1284365C2

REFLECTOR

- amber

1шт.

14

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

15

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.

16

220484A1

EXTENSION

- frame

2шт.

17

220483A1

PLATE

- mounting

2шт.

18

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

8шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

20

425-1010

NUT,5/8"-11, G5

8шт.
