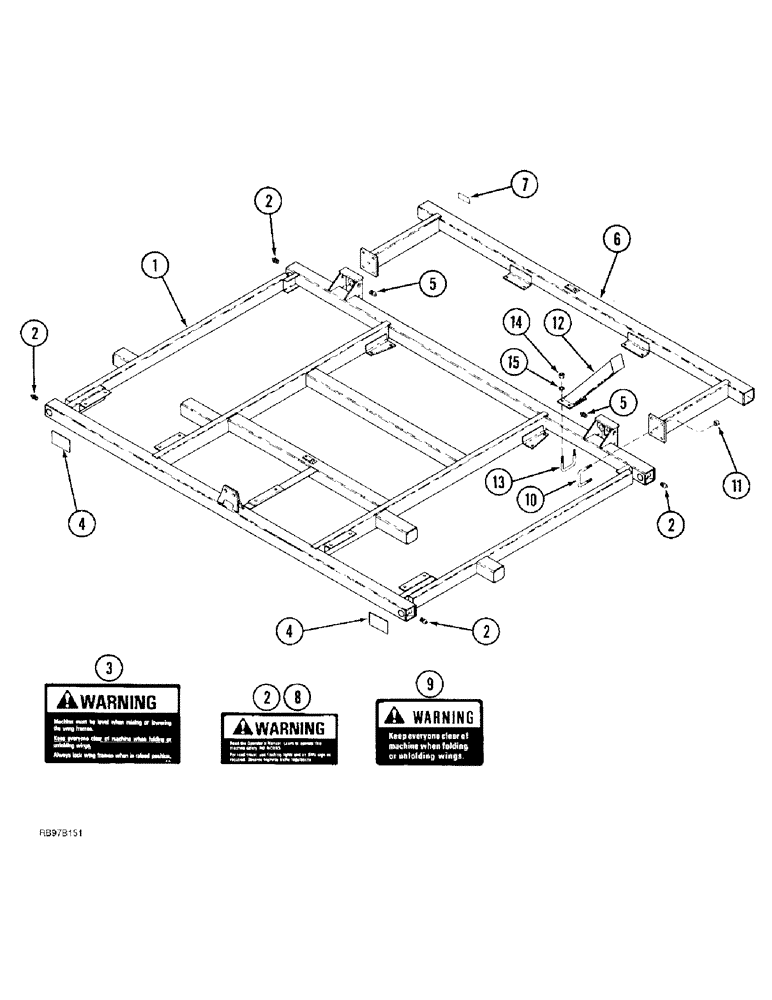

Запчасти Case IH 4300 (9-004) - MAIN FRAME AND FRONT EXTENSION, NARROW TRANSPORT, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

137170A1

FRAME ASSY

FRAME ASSEMBLY - main, 11 foot wide

1шт.

2

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual

1шт.

3

810170C2

PRODUCT GRAPHIC

DECAL - Warning, machine must be level

2шт.

4

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

6шт.

6

140406A1

BEAM ASSY.

EXTENSION ASSEMBLY - frame, front

1шт.

7

1284365C2

REFLECTOR

- amber

1шт.

8

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual

1шт.

9

59051C2

PRODUCT GRAPHIC

DECAL - Warning, keep everyone clear of machine when folding or unfolding wings

2шт.

10

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

11

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.

12

142352A1

SUPPORT

- wing

2шт.

13

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

15

425-1010

NUT,5/8"-11, G5

8шт.
