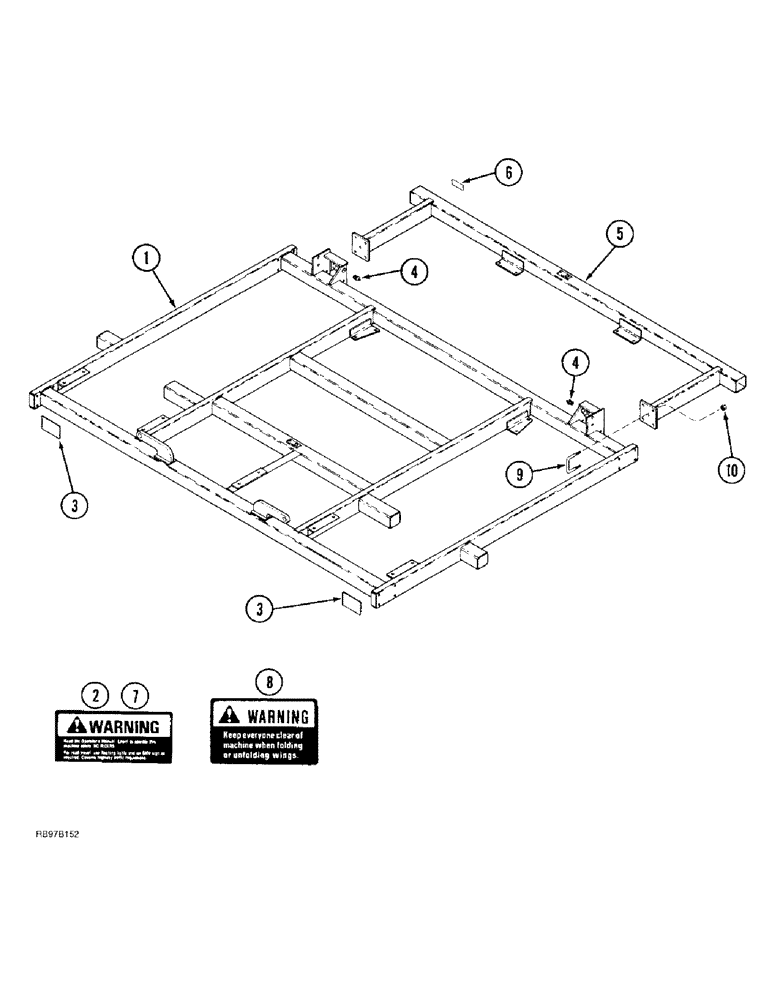

Запчасти Case IH 4300 (9-002) - MAIN FRAME AND FRONT EXTENSION, NARROW TRANSPORT, FLAT FOLD (09) - CHASSIS/ATTACHMENTS

1

137172A1

FRAME

ASSEMBLY - main, 11 foot wide

1шт.

2

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual

1шт.

3

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

5

140406A1

BEAM ASSY.

EXTENSION ASSEMBLY - frame, front

1шт.

6

1284365C2

REFLECTOR

- amber

1шт.

7

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual

1шт.

8

59051C2

PRODUCT GRAPHIC

DECAL - Warning, keep everyone clear of machine when folding or unfolding wings

2шт.

9

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

10

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.
