Запчасти Case IH 4300 (8-060) - LOAD CHECK VALVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

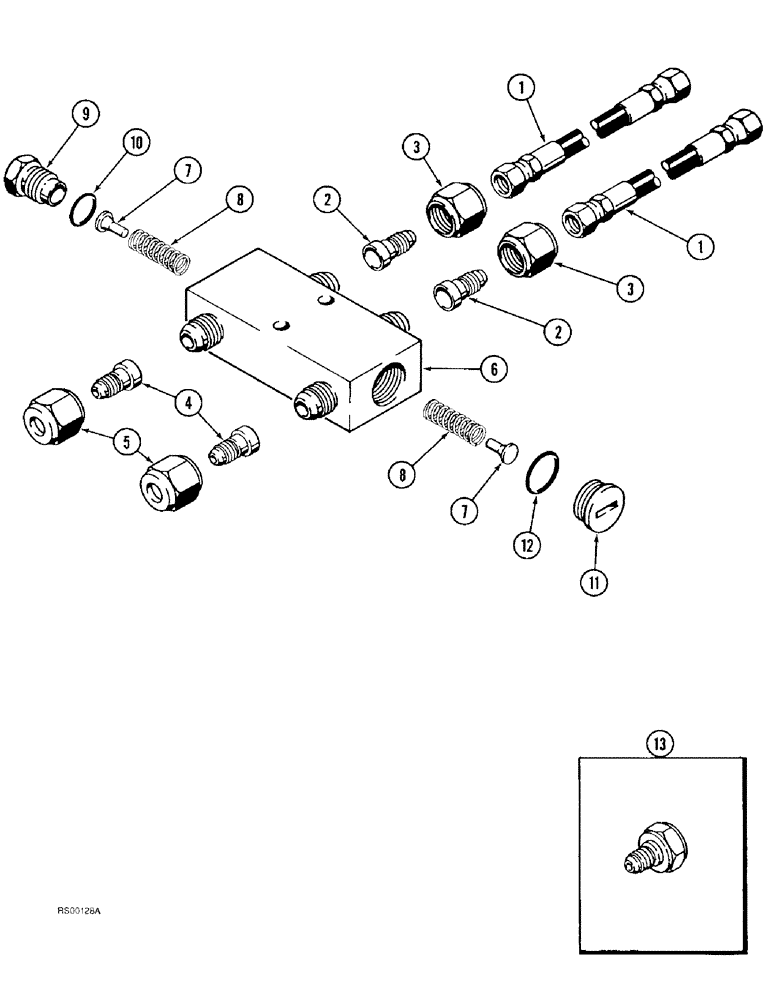

Схема запчастей Case IH 4300 - (8-060) - LOAD CHECK VALVE HYDRAULIC CIRCUIT (08) - HYDRAULICS
9
5
3
1
2
3
2
7
1
7
8
12
8
10
11
13
6
4

Артикул

Название

Примечание

Количество

1

1284323C1

HYDRAULIC HOSE

HOSE - 381 mm (15 inch) long

2шт.

2

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER - reducing, 5/8 tube OD x 9/16-18 inch flare

4шт.

3

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, 7/8 inch NF

4шт.

142864C95

VALVE

ASSEMBLY - load check, alternating

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - load check valve

1шт.

7

85145C1

PIN

- ball retaining

2шт.

8

372649R1

SPRING

- check valve

2шт.

9

NSS

NOT SOLD SEPARAT

PLUG - hex head

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - round head

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

ADAPTER - reducing, 7/8-14 flare x 9/16-18 flare

4шт.

Выбрано товаров: 12
