Запчасти Case IH 4300 (8-058) - CYLINDER ASSEMBLY, 1286364C91 (08) - HYDRAULICS

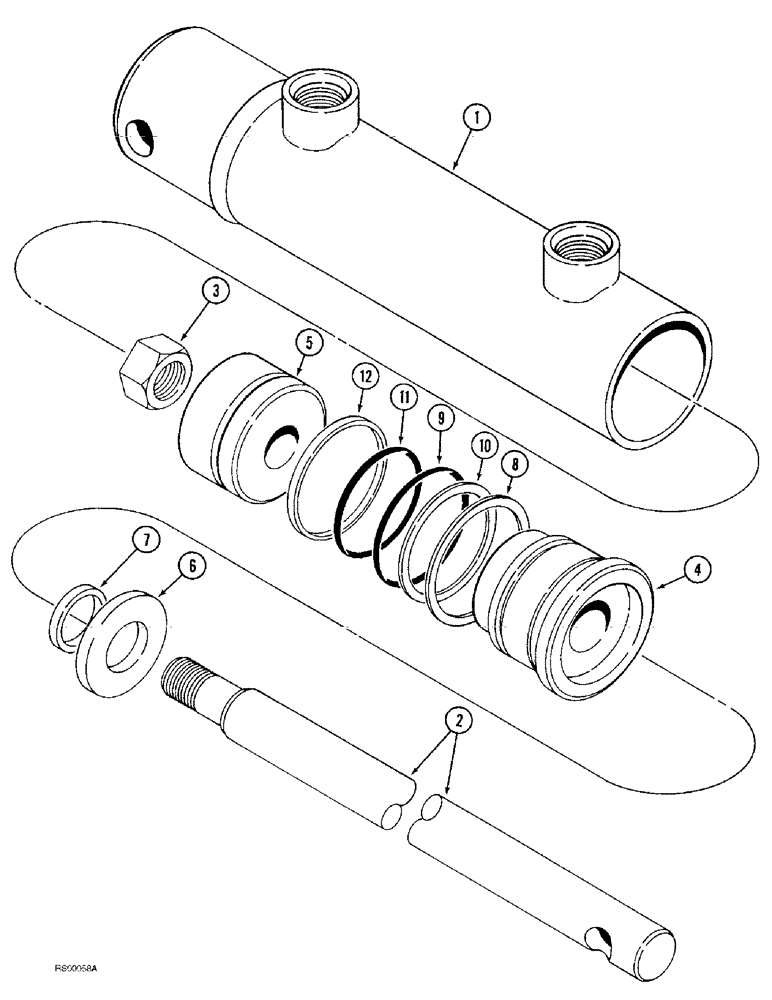

Схема запчастей Case IH 4300 - (8-058) - CYLINDER ASSEMBLY, 1286364C91 (08) - HYDRAULICS
10
7
5
6
11
4
8
2
3
9
12
1

Артикул

Название

Примечание

Количество

1286364C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 38 (1-1/2) ID x 102 mm (4 inch) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder assembly

1шт.

2

85262C1

ROD

- piston

1шт.

3

9411648

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2 inch NF

1шт.

4

85264C1

HEAD

GLAND - cylinder

1шт.

5

85263C1

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit. P/N 85020C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of seal kit. P/N 85020C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

Part of seal kit. P/N 85020C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit. P/N 85020C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit. P/N 85020C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit. P/N 85020C1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit. P/N 85020C1

1шт.

85020C1

SEAL KIT

KIT - seal, Includes: Ref. 6 - 12

1шт.

Выбрано товаров: 21
