Запчасти Case IH 4300 (8-056) - CYLINDER ASSEMBLY, 1954089C1 (08) - HYDRAULICS

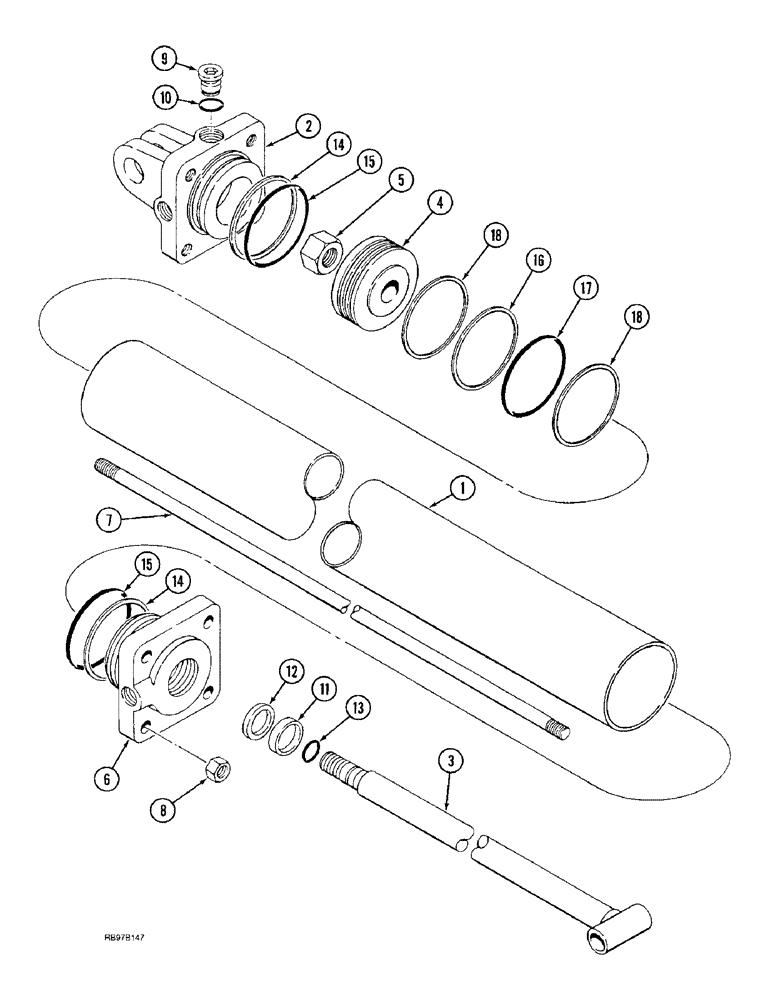

Схема запчастей Case IH 4300 - (8-056) - CYLINDER ASSEMBLY, 1954089C1 (08) - HYDRAULICS
18
8
11
18
7
15
1
9
5
15
12
13
2
16
14
10
17
4
3
14
6

Артикул

Название

Примечание

Количество

1954089C1

CYLINDER

ASSEMBLY - 114 (4-1/2) ID x 864 mm (34 inch) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1954155C1

JACK HEAD

CAP - end

1шт.

3

1954156C1

ROD

- piston

1шт.

4

1954189C1

JACK PISTON

PISTON - cylinder

1шт.

5

232-46116

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

1шт.

6

1954158C1

HEAD

GLAND - cylinder

1шт.

7

1954159C1

BOLT,3/4" - 10 x 39.812"

- tie, cylinder

4шт.

8

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

9

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit. P/N 1954188C1

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit. P/N 1954188C1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit. P/N 1954188C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit. P/N 1954188C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-ring

2шт.

Part of seal kit. P/N 1954188C1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of seal kit. P/N 1954188C1

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit. P/N 1954188C1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit. P/N 1954188C1

1шт.

18

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of seal kit. P/N 1954188C1

1шт.

1954188C1

SEAL KIT

- seal, Includes: Ref. 10 - 18

1шт.

Выбрано товаров: 29
