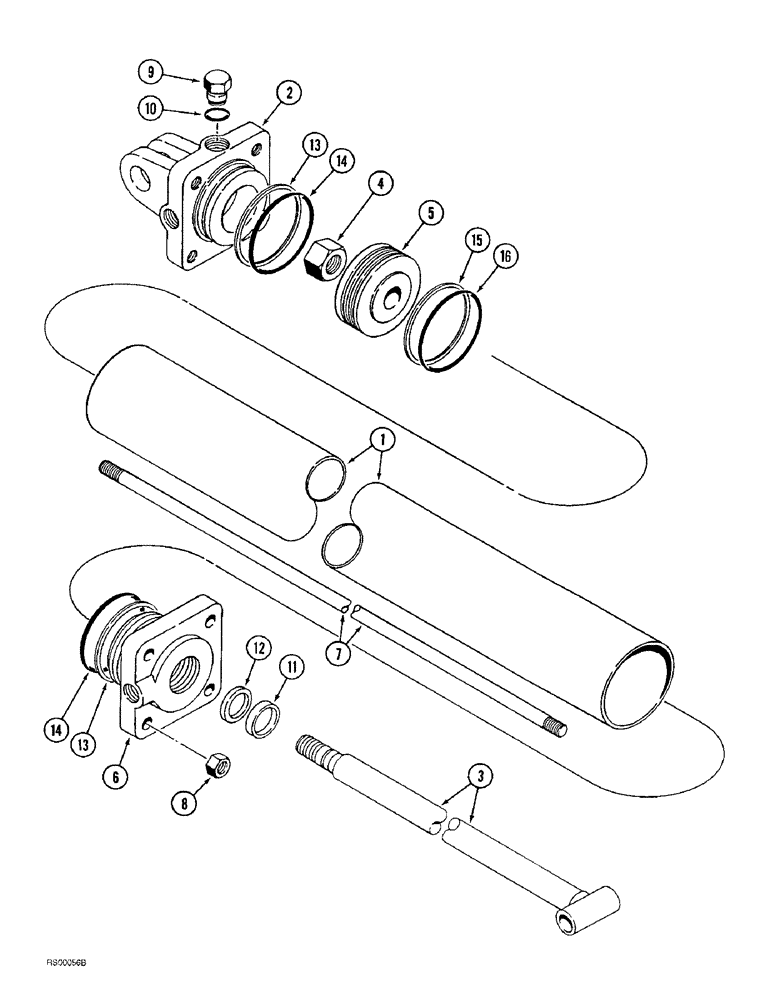

Запчасти Case IH 4300 (8-052) - CYLINDER ASSEMBLY, 1285753C94 (08) - HYDRAULICS

1285753C94

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 864 mm (34 inch) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272825C1

HEAD

- cylinder, two ports

1шт.

3

1285955C1

ROD

- piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

5

85179C1

PISTON

- cylinder

1шт.

6

1272826C1

HEAD

GLAND - cylinder

1шт.

7

1285832C1

TIE-ROD

BOLT - cylinder tie

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit. P/N 84919C2

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit. P/N 84919C2

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit. P/N 84919C2

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-ring

2шт.

Part of seal kit. P/N 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of seal kit. P/N 84919C2

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit. P/N 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit. P/N 84919C2

1шт.

84919C2

GASKET KIT

KIT - seal, Includes: Ref. 10 - 16

1шт.
