Запчасти Case IH 4300 (8-050) - CYLINDER ASSEMBLY, 1272150C91 (08) - HYDRAULICS

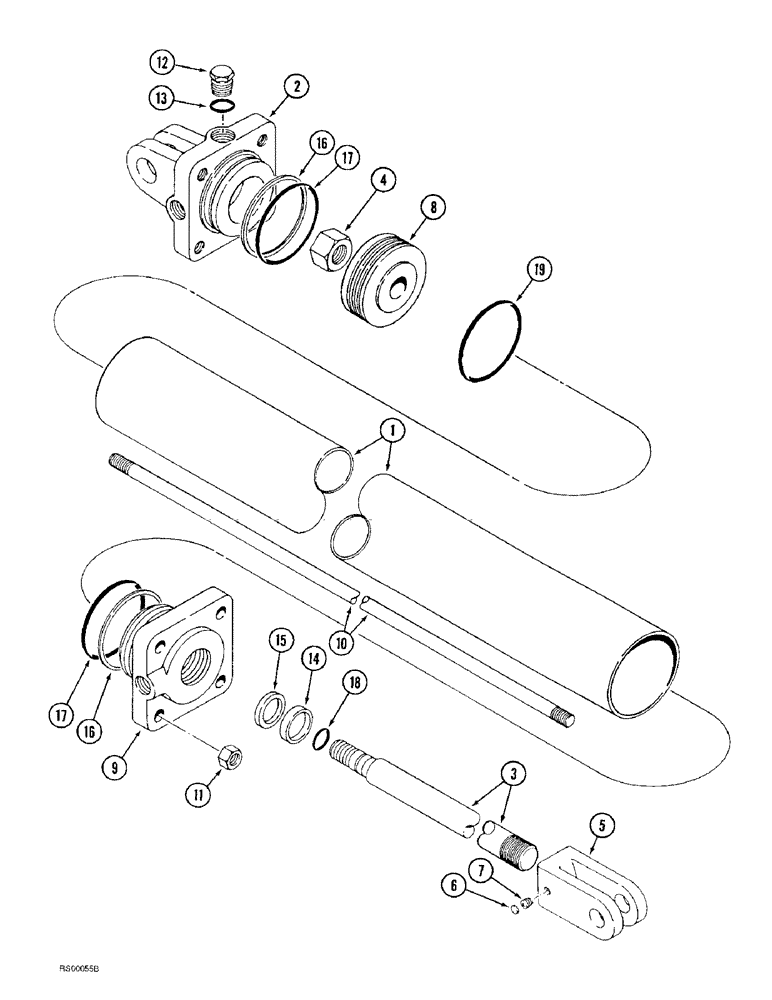

Схема запчастей Case IH 4300 - (8-050) - CYLINDER ASSEMBLY, 1272150C91 (08) - HYDRAULICS
19
17
18
3
16
8
7
6
2
4
17
5
12
9
13
15
1
10
14
16
11

Артикул

Название

Примечание

Количество

1272150C91

CYLINDER

ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1282336C1

HEAD

- cylinder

1шт.

3

1263346C1

ROD ASSY.

ROD - piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

5

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert, nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

8

149930C2

PISTON

- cylinder

1шт.

9

1282337C1

GLAND

- cylinder

1шт.

10

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT - tie, cylinder retaining

4шт.

11

25-1010

NUT,5/8"-11, G5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit. P/N 79979C3

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit. P/N 79979C3

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit. P/N 79979C3

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-ring

2шт.

Part of seal kit. P/N 79979C3

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of seal kit. P/N 79979C3

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit. P/N 79979C3

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit. P/N 79979C3

1шт.

79979C3

SEAL KIT

KIT - seal, Includes: Ref. 13 - 19

1шт.

Выбрано товаров: 28
