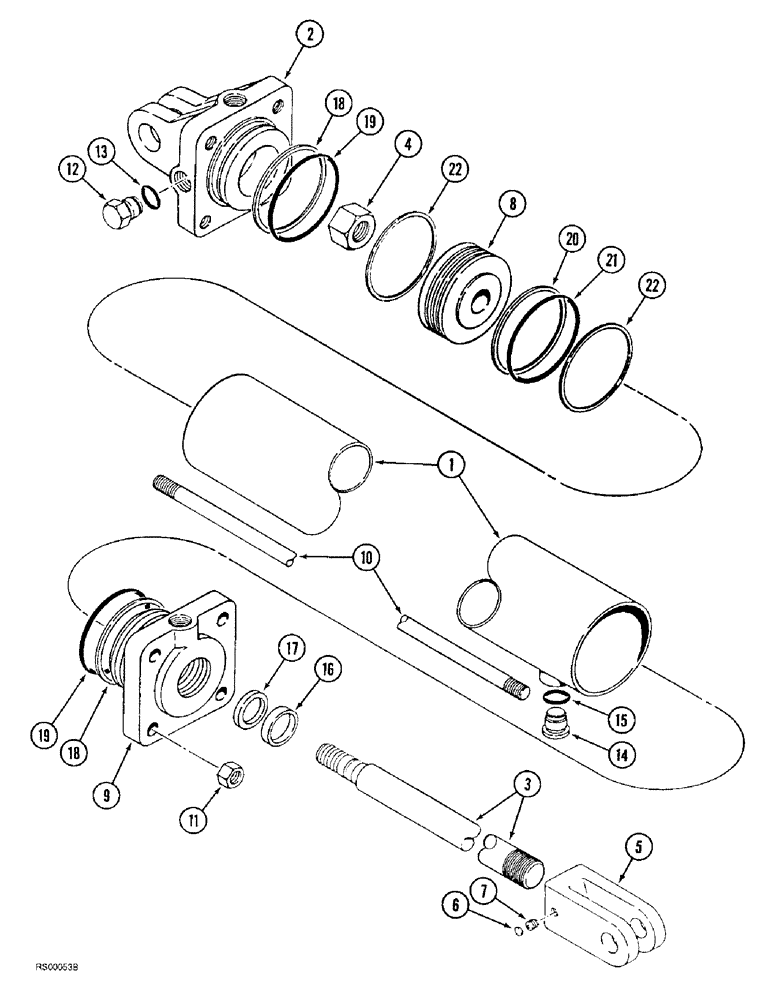

Запчасти Case IH 4300 (8-046) - CYLINDER ASSEMBLY, 1272485C92 (08) - HYDRAULICS

1272485C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 102 (4) ID x 203 mm (8 inch) stroke

1шт.

87423777R

REMAN-HYD CYLINDER

Reman for New PN 1272485C92

1шт.

87423777C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272919C1

CYLINDER HEAD

CAP - end, cylinder

1шт.

3

1267056C1

ROD

- piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

5

1267057C1

CLEVIS,3/8" - 16

- rod end

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert, nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

8

92521C1

PISTON

- cylinder

1шт.

9

1272920C1

HEAD

GLAND - cylinder

1шт.

10

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - cylinder tie

4шт.

11

25-1010

NUT,5/8"-11, G5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit. P/N 80117C2

1шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit. P/N 80117C2

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit. P/N 80117C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit. P/N 80117C2

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-ring

2шт.

Part of seal kit. P/N 80117C2

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of seal kit. P/N 80117C2

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit. P/N 80117C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit. P/N 80117C2

1шт.

22

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of seal kit. P/N 80117C2

1шт.

80117C2

SEAL KIT

- seal, Includes: Ref. 13 and 15 - 22

1шт.
