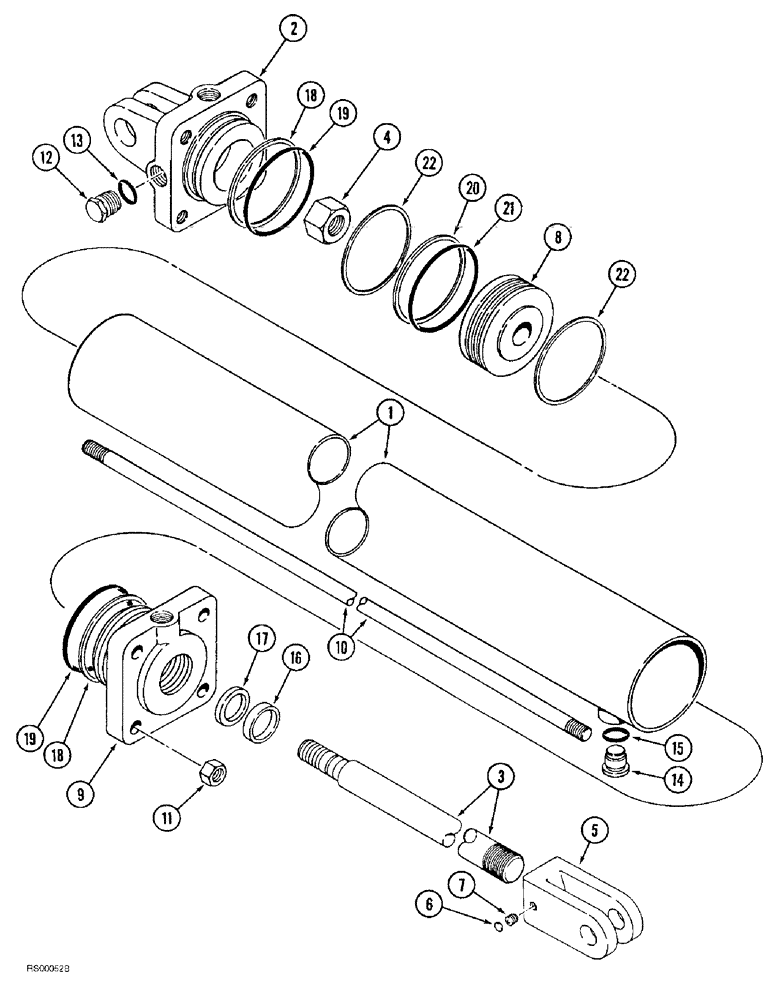

Запчасти Case IH 4300 (8-044) - CYLINDER ASSEMBLY, 1282328C92 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1282328C92
CYLINDER ASSY.
CYLINDER ASSEMBLY - 95 (3-3/4) ID x 203 mm (8 inch) stroke
1шт.
87423766R
REMAN-HYD CYLINDER
CYLINDER ASSEMBLY - 95 (3-3/4) ID x 203 mm (8 inch) stroke
1шт.
87423766C
CORE-HYD CYLINDER
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder
1шт.
2
1285799C1
HEAD
GLAND - cylinder
1шт.
3
1267056C1
ROD
- piston
1шт.
4
232-46314
LOCK NUT,7/8"-14, GC
NUT, LOCK, 7/8"-14, GC
1шт.
5
1267057C1
CLEVIS,3/8" - 16
- rod end
1шт.
6
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - insert, nylon
1шт.
7
483-1386
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point
1шт.
8
92520C1
PISTON
- cylinder
1шт.
9
1285798C1
END
GLAND - cylinder
1шт.
10
142461C1
TIE-ROD,Tie, 5/8" - 11 x 335mm
BOLT - cylinder tie
4шт.
11
25-1010
NUT,5/8"-11, G5
4шт.
12
214389
PLUG,3/4" - 16 ORB
1шт.
13
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
Part of seal kit. P/N 80115C2
1шт.
14
71100209
PLUG,Hex Soc, 3/4"-16 ORB
1шт.
15
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
Part of seal kit. P/N 80115C2
1шт.
16
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of seal kit. P/N 80115C2
1шт.
17
NSS
NOT SOLD SEPARAT
SEAL - piston rod
1шт.
Part of seal kit. P/N 80115C2
1шт.
18
NSS
NOT SOLD SEPARAT
RING - backup, end cap and gland O-ring
2шт.
Part of seal kit. P/N 80115C2
1шт.
19
NSS
NOT SOLD SEPARAT
O-RING - end cap and gland
2шт.
Part of seal kit. P/N 80115C2
1шт.
20
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
Part of seal kit. P/N 80115C2
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING - piston
1шт.
Part of seal kit. P/N 80115C2
1шт.
22
NSS
NOT SOLD SEPARAT
RING - wear, piston
2шт.
Part of seal kit. P/N 80115C2
1шт.
80115C2
SEAL KIT
KIT - seal, Includes: Ref. 13 and 15 - 22
1шт.
Выбрано товаров: 35
