Запчасти Case IH 4300 (8-038) - WING LIFT HYDRAULIC CIRCUIT, STD TRANSPORT, DOUBLE FOLD, 53 FT WIDE VIBRA SHANK, WITH FLOATING HITCH (08) - HYDRAULICS

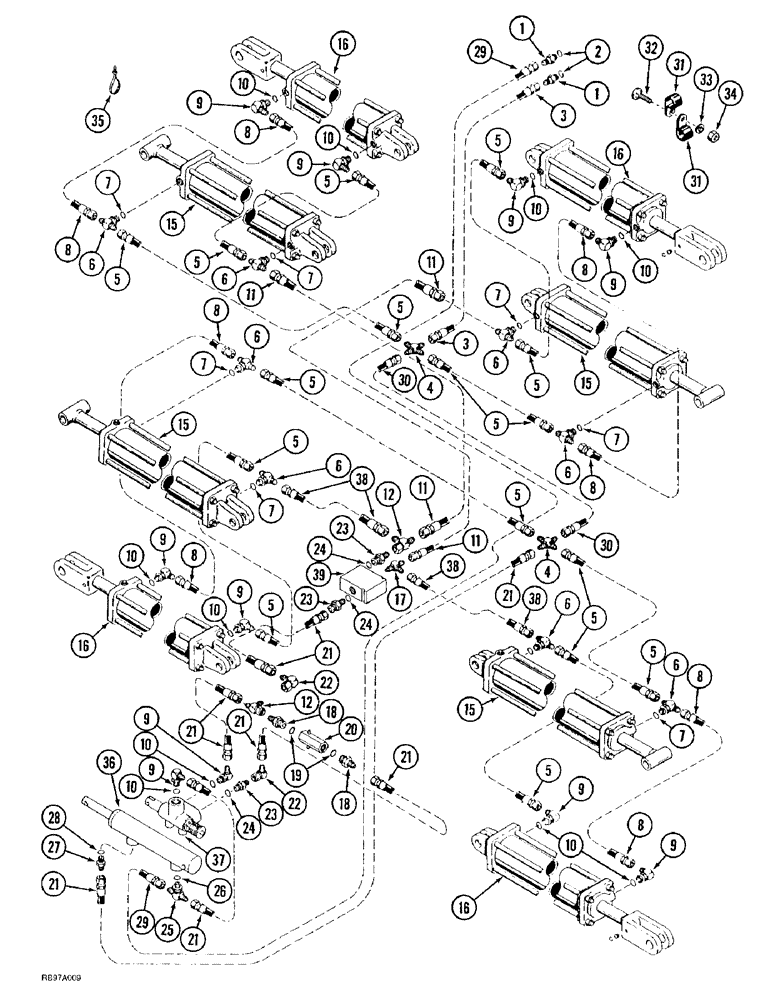

Схема запчастей Case IH 4300 - (8-038) - WING LIFT HYDRAULIC CIRCUIT, STD TRANSPORT, DOUBLE FOLD, 53 FT WIDE VIBRA SHANK, WITH FLOATING HITCH (08) - HYDRAULICS
23
3
17
5
22
15
8
9
6
21
29
37
4
27
3
35
7
8
5
5
6
39
7
18
23
10
1
4
9
11
8
5
5
11
21
25
26
28
10
23
10
10
10
5
12
19
6
10
6
12
38
20
7
7
36
16
24
30
8
15
21
24
10
11
5
24
1
9
32
5
2
5
21
9
21
15
21
9
34
6
33
8
15
6
8
6
6
11
9
9
38
5
38
21
5
29
22
7
6
10
9
7
10
9
5
30
9
18
6
7
31
5
8
5
8
16
31

Артикул

Название

Примечание

Количество

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

133933C2

HYDRAULIC HOSE

HOSE - 6604 mm (260 inch) long

1шт.

4

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS - hydraulic, 9/16-18 flare

2шт.

5

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE - 3175 mm (125 inch) long

8шт.

6

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 adj O-ring branch x 9/16-18 inch flare x flare

8шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

191936A1

HOSE

- 2795 mm (110 inch) long

4шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

10шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

129759C2

HYDRAULIC HOSE

HOSE - 4572 mm (180 inch) long

2шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

2шт.

15

224795C92

CYLINDER

ASSEMBLY - 102 (4) ID x 864 mm (34 inch) stroke (See Page 8-55)

4шт.

16

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke (See Page 8-49)

4шт.

16

1272149C92R

REMAN-HYD CYLINDER

4300 CASE IH FIELD CULTIVATOR, ASSEMBLY

4шт.

16

1272149C92C

CORE-HYD CYLINDER

Return Number

4шт.

17

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

- 9/16-18 flare branch x flare x 3/4-16 inch adj O-ring

1шт.

18

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

1279338C1

VALVE

- check

1шт.

21

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

5шт.

22

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

23

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

3шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

29

1284289C1

HYDRAULIC HOSE

HOSE - 9525 mm (375 inch) long

1шт.

30

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

9.52 mm ID x 2795.00 mm

1шт.

31

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

1шт.

31

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

32

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

33

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

36

1286364C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 38 (1-1/2) ID x 102 mm (4 inch) stroke (See Page 8-59)

1шт.

37

187904A1

VALVE

- transport lockout

1шт.

38

139517C1

HYDRAULIC HOSE

HOSE - 2032 mm (80 inch) long

2шт.

39

178922A1

VALVE

- flow divider

1шт.

40

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

41

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

42

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

425-104

NUT,1/4"-20, Cl 5

2шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 44
