Запчасти Case IH 4300 (8-026[A]) - WING LIFT HYDRAULIC CIRCUIT, STANDARD TRANSPORT, FLAT FOLD, 18.8 FT THRU 27.8 FT WIDE VIBRA CHISEL (08) - HYDRAULICS

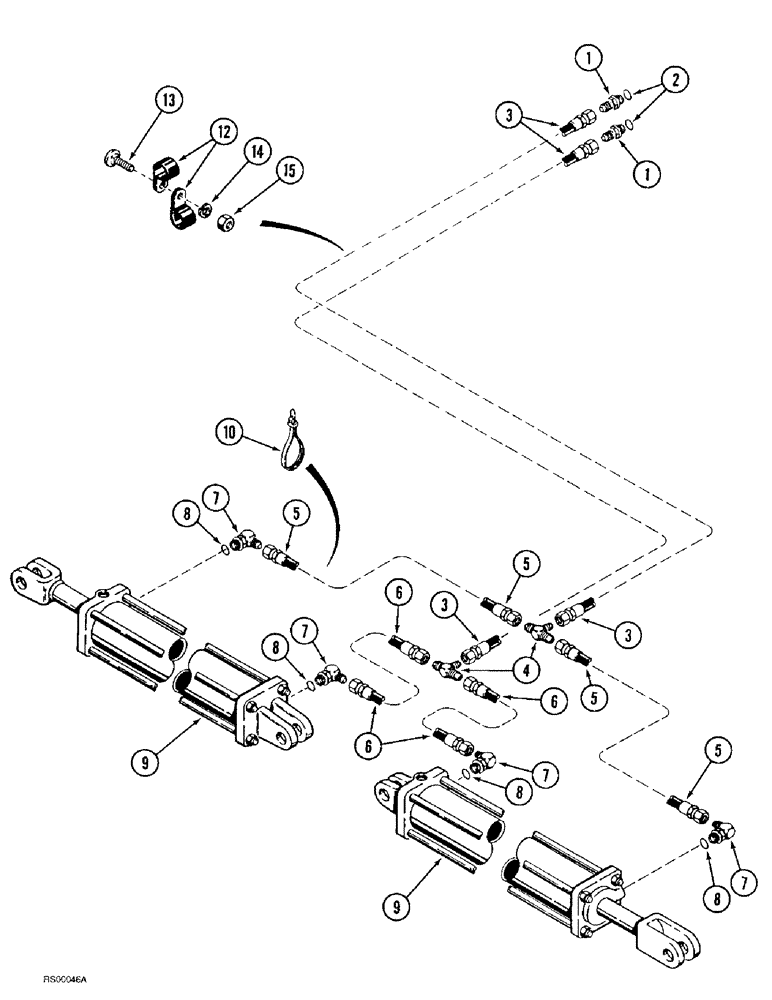

Схема запчастей Case IH 4300 - (8-026[A]) - WING LIFT HYDRAULIC CIRCUIT, STANDARD TRANSPORT, FLAT FOLD, 18.8 FT THRU 27.8 FT WIDE VIBRA CHISEL (08) - HYDRAULICS
5
8
5
7
3
5
7
6
8
4
1
10
8
6
6
12
9
9
1
13
2
14
7
3
5
8
3
7
15

Артикул

Название

Примечание

Количество

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

117011A1

HOSE

- 7875 mm (310 inch) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

5

147878C1

HOSE

- 1650 mm (65 inch) long

2шт.

6

147876C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long

2шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke (18.4 foot through 22.9 foot wide vibra shank)(18.8 foot through 23.2 foot wide vibra chisel)(See Page 8-49)

2шт.

9

1272149C92R

REMAN-HYD CYLINDER

4300 CASE IH FIELD CULTIVATOR, ASSEMBLY

2шт.

9

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

9

1272150C91

CYLINDER

ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke (25.1 foot through 27.4 foot wide vibra shank)(24.8 through 27.8 foot wide vibra chisel)(See Page 8-51)

2шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

12

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

Выбрано товаров: 18
