Запчасти Case IH 4300 (8-012[A]) - DEPTH CONTROL HYDRAULIC CIRCUIT, NARROW TRANSPORT, VERTICAL FOLD, 34.5 FT - 39 FT WIDE VIBRA CHISEL (08) - HYDRAULICS

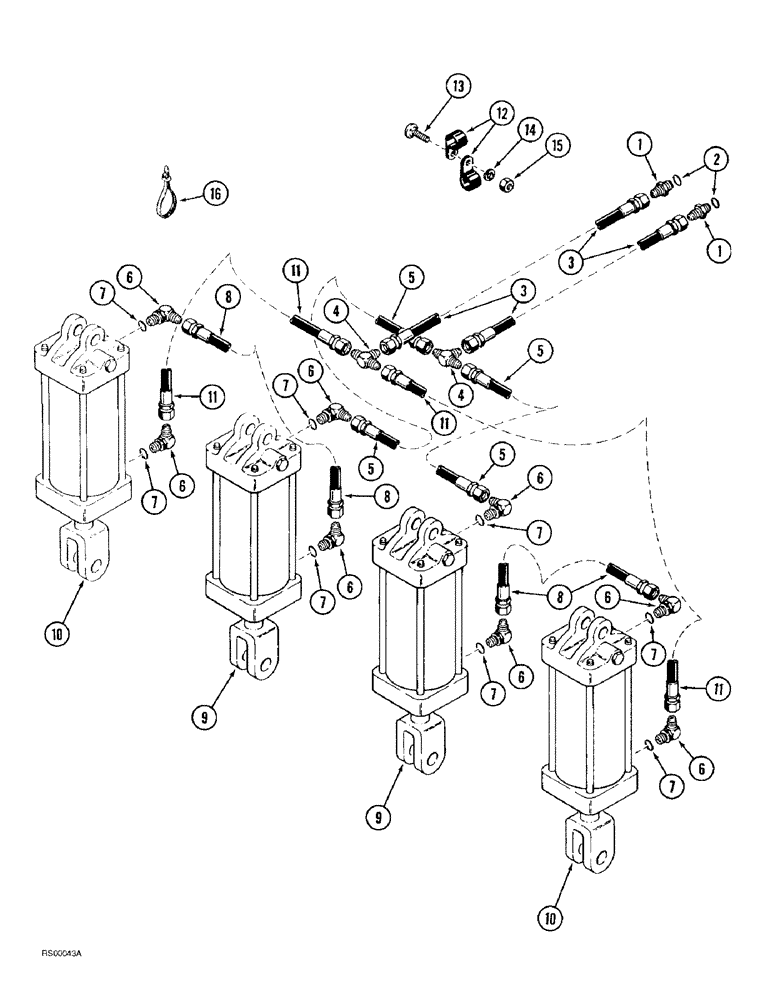

Схема запчастей Case IH 4300 - (8-012[A]) - DEPTH CONTROL HYDRAULIC CIRCUIT, NARROW TRANSPORT, VERTICAL FOLD, 34.5 FT - 39 FT WIDE VIBRA CHISEL (08) - HYDRAULICS
5
7
6
9
9
8
3
7
2
15
1
6
6
11
5
10
11
5
6
8
11
6
7
13
6
8
6
7
10
12
11
7
5
4
3
6
7
6
14
7
4
7
1

Артикул

Название

Примечание

Количество

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

1284263C1

HYDRAULIC HOSE

HOSE - 7240 mm (285 inch) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

5

1254574C2

HYDRAULIC HOSE

HOSE - 1525 mm (60 inch) long

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

8шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1284298C1

HYDRAULIC HOSE

HOSE - 4064 mm (160 inch) long

2шт.

9

1272485C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 102 (4) ID x 203 mm (8 inch) stroke (See Page 8-47)

2шт.

9

87423777R

REMAN-HYD CYLINDER

Reman for New PN 1272485C92

2шт.

9

87423777C

CORE-HYD CYLINDER

Return Number

2шт.

10

1282328C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 95 (3-3/4) ID x 203 mm (8 inch) stroke (See Page 8-45)

2шт.

10

87423766R

REMAN-HYD CYLINDER

CYLINDER ASSEMBLY - 95 (3-3/4) ID x 203 mm (8 inch) stroke (See Page 8-45)

2шт.

10

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

11

129764C2

HYDRAULIC HOSE

HOSE - 5461 mm (215 inch) long

2шт.

12

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

Выбрано товаров: 21
