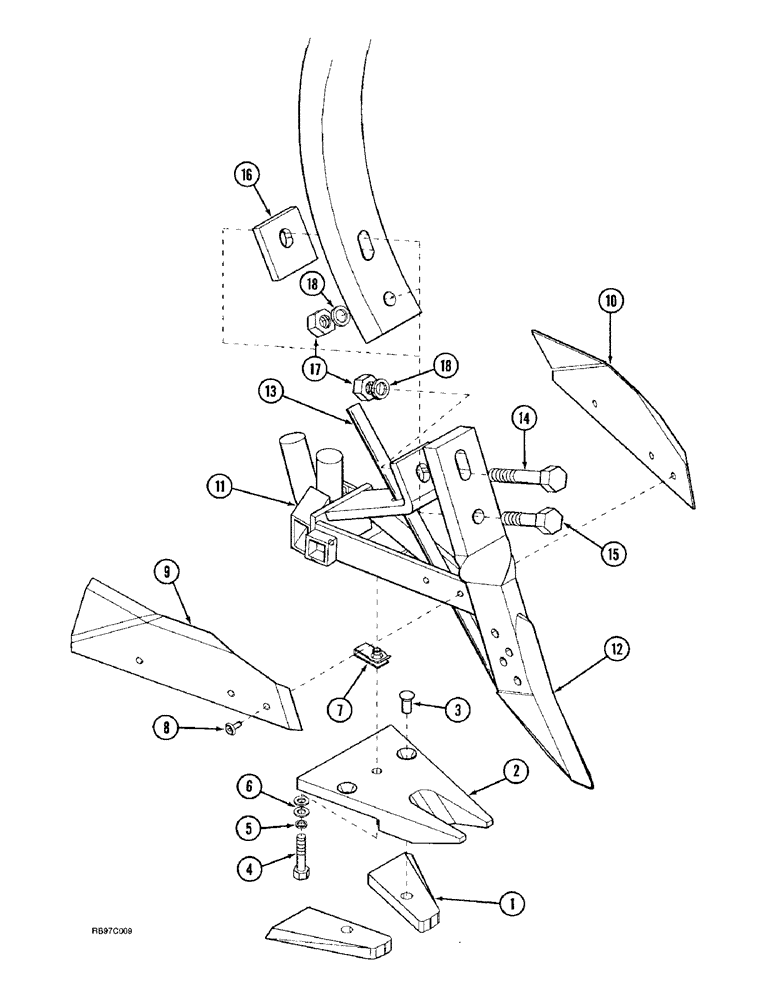

Запчасти Case IH 4300 (9-118) - OPENER, ANDERSON TRIPLE SHOOT (09) - CHASSIS/ATTACHMENTS

1

1030570

LARGE PLATE

INSERT - opener, chrome

2шт.

2

1030417

BASE PLATE

PLATE - base

1шт.

3

1030571

SCREW

- flat head, socket, 3/8 NC x 1 inch

2шт.

4

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

5

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

1011583

WASHER

- flat

2шт.

7

1030568

NUT

- speed clip, 5/16 NC

1шт.

8

1030567

RIVET

- button head, 1/4 x 1/2 inch

4шт.

8

1030572

RIVET

- button head, 1/4 x 1 inch

2шт.

9

1030054

SHIELD

- opener, right-hand

1шт.

10

1030053

SHIELD

- opener, left-hand

1шт.

11

1033108

BODY

FRAME - opener

1шт.

12

1033282

TIP

- opener, chrome

1шт.

13

1030559

TUBE

- liquid, straight

1шт.

14

1017719

BOLT

- hex, 1/2 NC x 3-1/4 inch

1шт.

15

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

16

1033283

SPACER

PLATE - spacer

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
