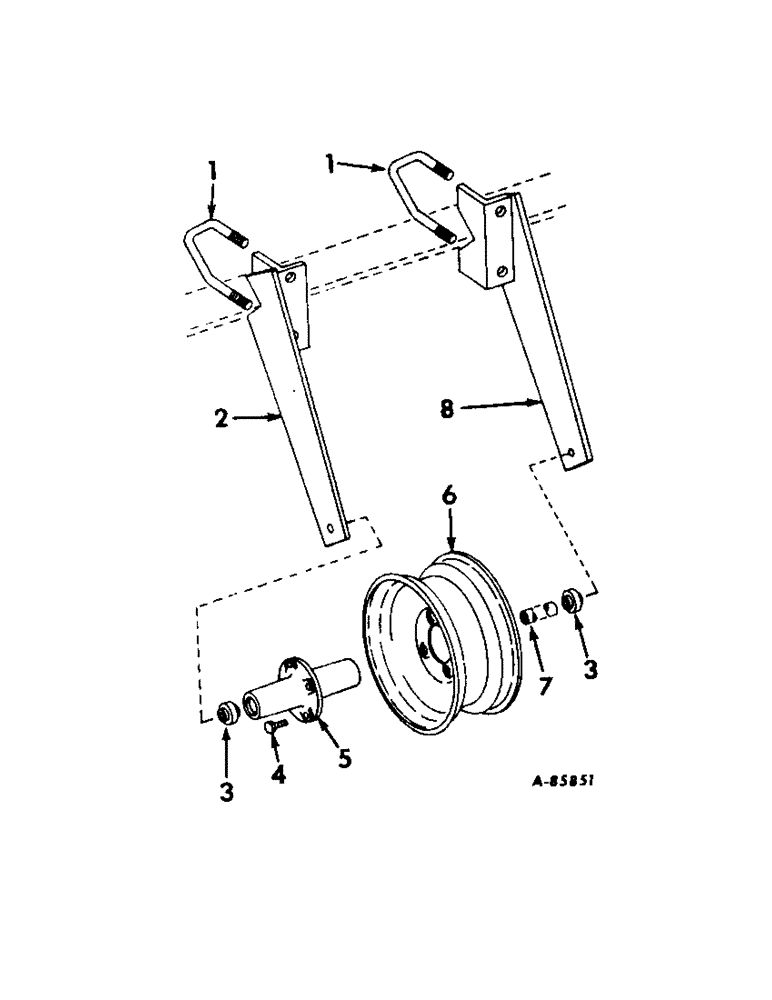

Запчасти Case IH 43 (D-05) - MAIN FRAME CARRYING WHEEL ATTACHMENT, FOR EIGHT AND TWELVE ROW CULTIVATORS

1

487247R1

BOLT, wheel arm u

4шт.

9849633

NUT,1"-8, G5

8шт.

2

483558R91

AXLE ASSY, wheel RH

2шт.

3

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

roller

4шт.

4

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

21144R1

BOLT, 5/8 x 12 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

5

465418R2

HUB

wheel

2шт.

6

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in.

2шт.

7

465423R1

PIPE

SPACER, pipe

2шт.

8

483557R91

AXLE ASSY, wheel LH

2шт.
