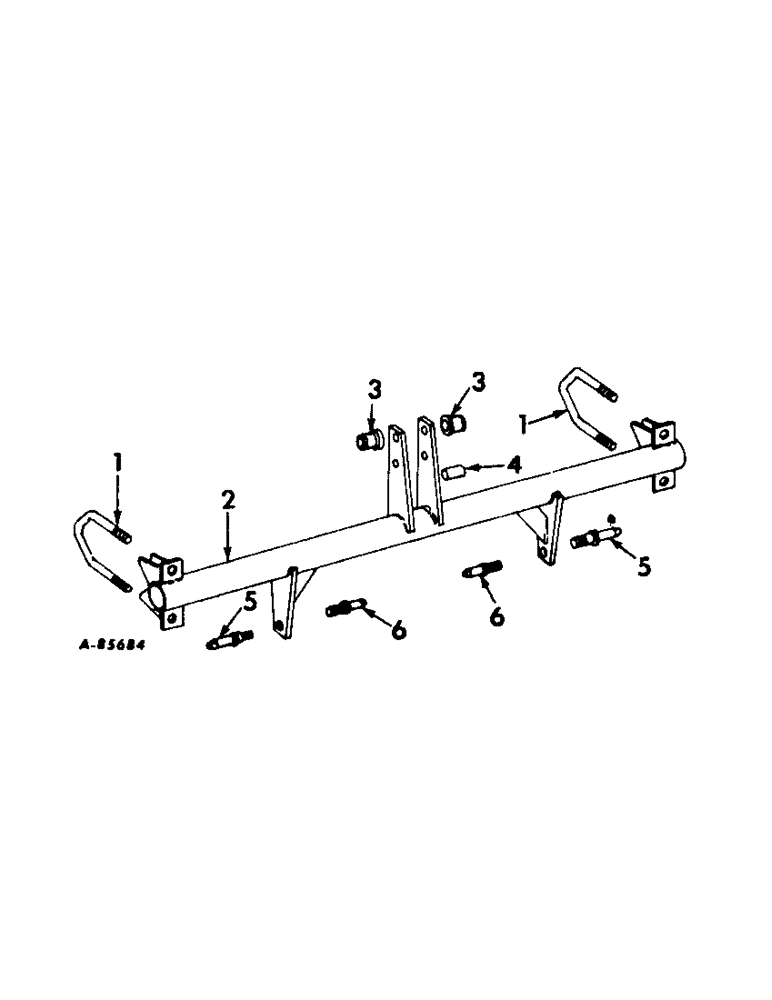

Запчасти Case IH 43 (D-05[A]) - THREE-POINT HITCH CATEGORY I AND II, FOR SIX-ROW CULTIVATORS

1

462402R2

BOLT,7/8" - 9 x 9.6"

U-BOLT, hitch bracket

2шт.

NLS

NO LONGER SERVICED

7/8"

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

2

489228R1

BRACKET

ASSY, hitch

1шт.

3

481074R1

BUSHING, hitch bracket upper arm, for category I hitch

2шт.

454417R1

SNAP RING,#100, Ext

Ring, Snap, , upper arm bushing, for category I hitch #100, Ext

2шт.

4

462425R1

SPACER

mast

1шт.

18841R1

BOLT,Hex, 3/4"-10 x 4", G2

3/4 x 4 C-Z hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

5

472790R2

STUD

lower, for category II hitch

1шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

6

470511R1

STUD

lower, for category I hitch

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

2шт.

131047

WASHER,7/8"

7/8"

2шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

2шт.

1001029R3

DECAL

PRODUCT GRAPHIC, IH

1шт.

2751264R1

PRODUCT GRAPHIC

International

1шт.
