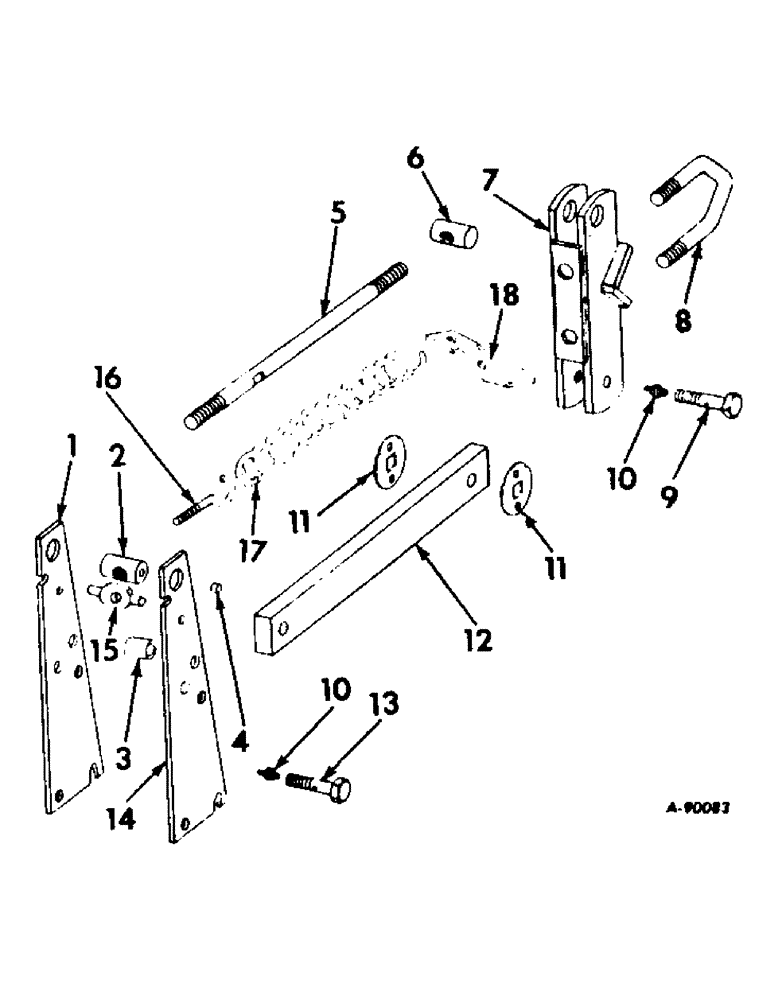

Запчасти Case IH 43 (D-04) - PARALLEL LINKAGE

1

487225R1

PLATE

tool bar tapped support

1шт.

2

483286R1

PIVOT ASSY.

SWIVEL, upper link rear

1шт.

3

483284R1

SPACER

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

4

522591R1

PLUG

bolt locking

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2-1/2 C-Z std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

5

523448R1

ROD

upper link

1шт.

6

483285R1

PIVOT ASSY.

SWIVEL, upper lin front

1шт.

7

483276R91

BRACKET ASSY, hd

1шт.

8

524047R2

BOLT,U, 3/4" - 10 x 7 5/8"

U-BOLT

1шт.

280954

NUT,3/4"-10, G5

2шт.

9

487061R1

BOLT

lower link pivot front

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

2шт.

11

464414R1

RETAINER

WASHER, lower pivot brg

2шт.

12

483281R1

BAR, lower parallel link

1шт.

13

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower link rear

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

1шт.

14

487226R1

PLATE

tool bar not tapped support

1шт.

15

487235R1

PIVOT

trunnion

1шт.

16

612372R1

BOLT,Eye, 5/16" - 18 x 4"

eye

1шт.

120376

NUT,5/16"-18, G5

1шт.

17

487236R1

SPRING

pressure

1шт.

18

487234R1

BRACE, spring anchor

1шт.
