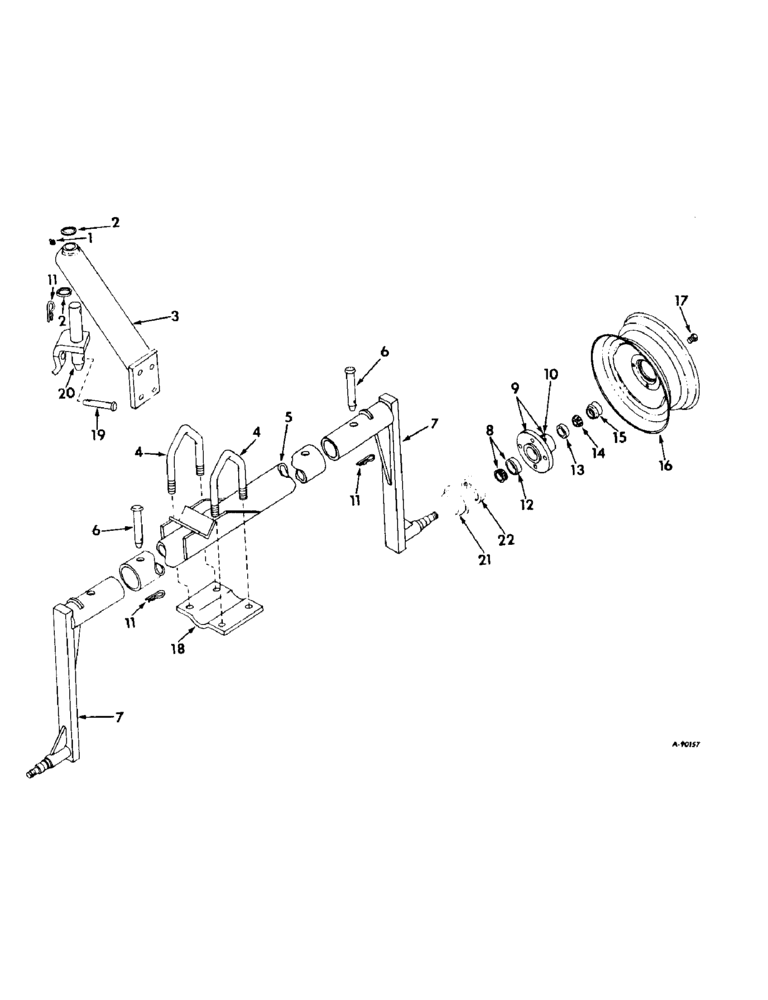

Запчасти Case IH 43 (D-03) - TRANSPORT ATTACHMENT, FOR EIGHT AND TWELVE-ROW CULTIVATORS

1

66584D

FITTING

3/16 drive type str lub, in transport tongue

1шт.

2

483587R1

WASHER

pivot

2шт.

3

483583R91

TUBE ASSY, hitch

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

3/4-9 C-Z hex.

4шт.

4

462402R2

BOLT,7/8" - 9 x 9.6"

U

2шт.

131047

WASHER,7/8"

7/8"

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

5

483574R91

TUBE ASSY, transport

1шт.

6

486220R1

PIN

transport tube pointed

2шт.

7

483579R91

AXLE ASSY, wheel

2шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

9

472220R21

HUB

W/FITTING, wheel

2шт.

443804

SCREW, 1/4-28 x 1/4 C-Z slt-ov-pt hdls set

2шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub, wheel hub

2шт.

11

517843R1

COTTER PIN

PIN, quick attachable cot.

3шт.

12

651817R1

BEARING CUP

CUP, inner bearing

2шт.

13

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE ASSY, outer bearing

2шт.

13

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

14

651814R1

BEARING CUP

CUP, outer bearing

2шт.

15

651194R1

CAP

wheel brg hub

2шт.

16

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 x 5 J standard, recommended tire size 8.50 x 14, 8.00 x 14, 7.50 x 14 or 7.00 x 14

2шт.

17

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

conical hd

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

69442D

NUT

slt-hex.

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

18

483578R1

SECTION, bracket

1шт.

19

651866R1

PIN, pointed

1шт.

20

483588R91

BRACKET ASSY, pivot

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

21

472222R1

SLEEVE

oil seal wear

2шт.

22

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.
