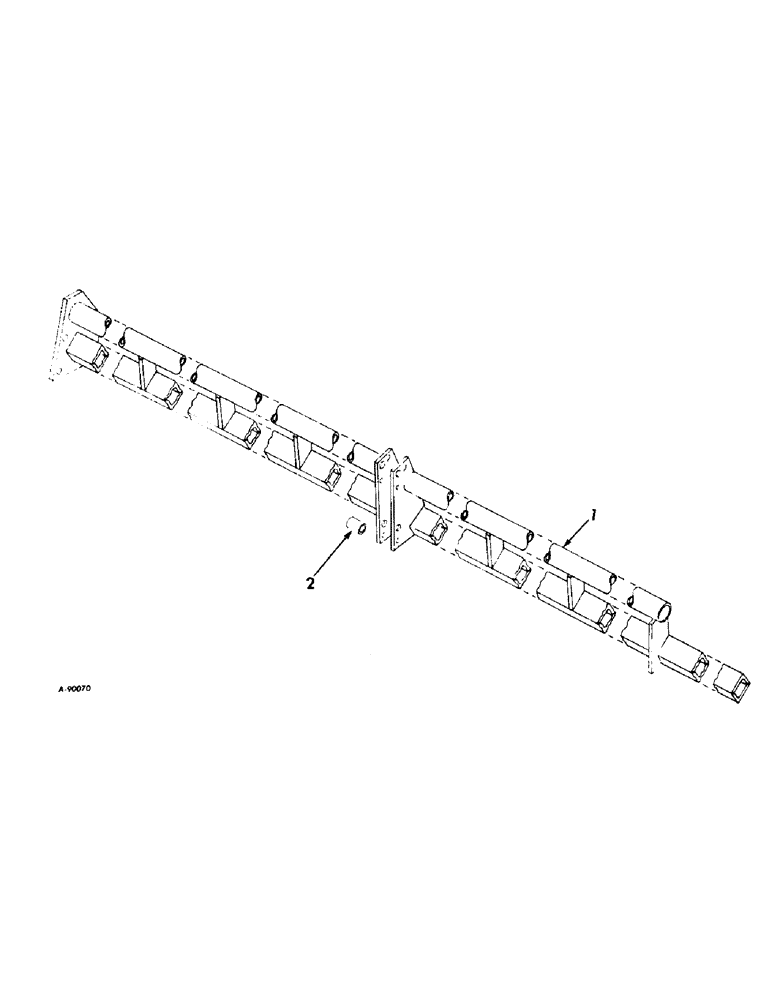

Запчасти Case IH 43 (D-02) - MAIN FRAME, FOR EIGHT AND TWELVE-ROW CULTIVATORS

1

487206R2

FRAME ASSY, main

1шт.

Q1237

PIN,3/4" x 2 1/2"

3/4 x 2-1/2 std-hd

2шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

2

462425R1

SPACER

mast

1шт.

21449R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

SCREW, 3/4-10 x 4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.
