(D-10[B]) - TWO-POINT FAST-HITCH, FOR SIX-ROW CULTIVATORS

Запчасти Case IH 43 (D-10[B]) - TWO-POINT FAST-HITCH, FOR SIX-ROW CULTIVATORS

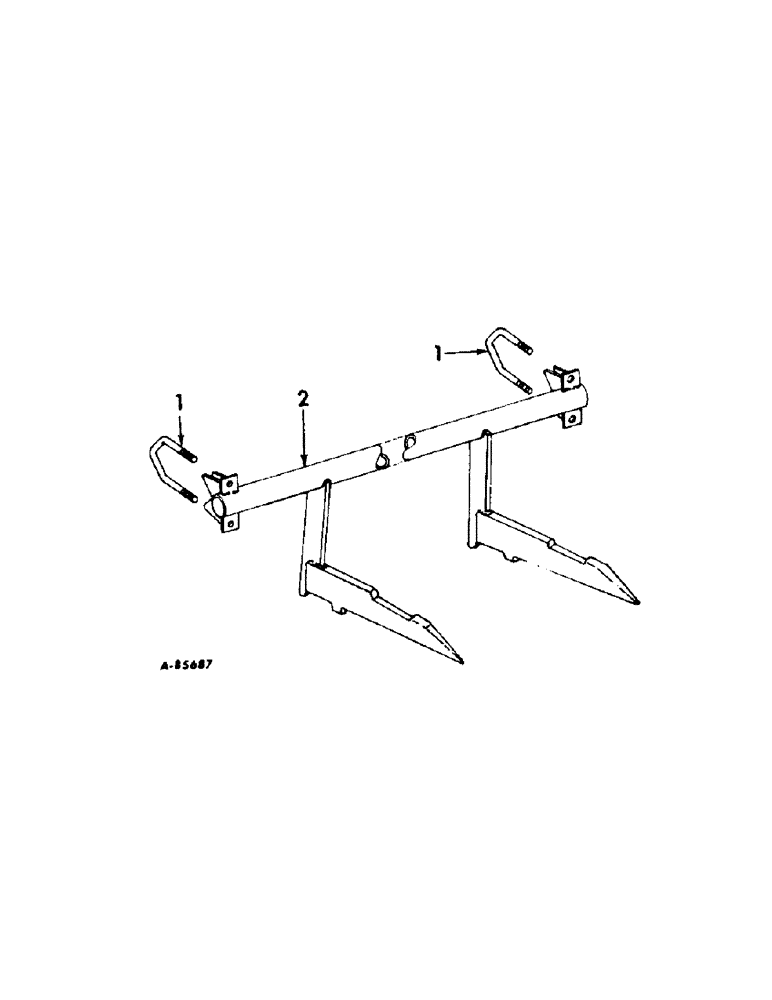

Схема запчастей Case IH 43 - (D-10[B]) - TWO-POINT FAST-HITCH, FOR SIX-ROW CULTIVATORS
2
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

525626R1

BOLT,U, 7/8" - 9 x 8 3/8"

attaching U

2шт.

131047

WASHER,7/8"

7/8"

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

2

BRACKET ASSY, coupling beam, discontinued for service

1шт.

2751264R1

PRODUCT GRAPHIC

International

1шт.

1001412R2

DECAL

PRODUCT GRAPHIC, IH

1шт.

Выбрано товаров: 6
