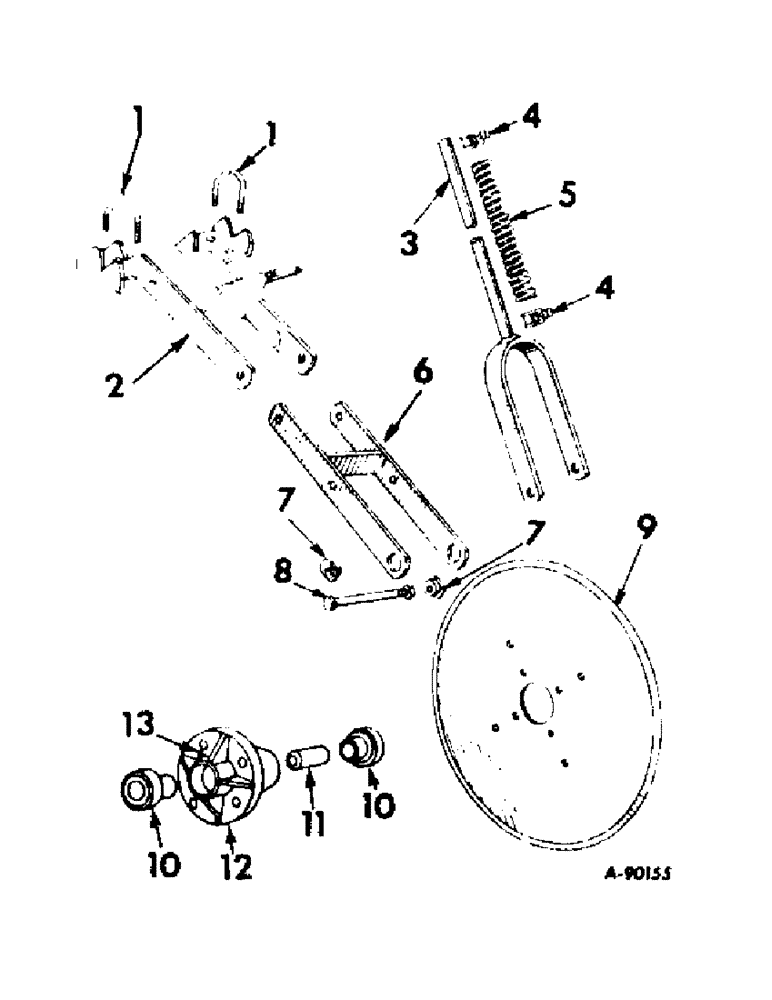

Запчасти Case IH 43 (D-07) - ROLLING GUIDE FIN

1

483302R1

BOLT, attaching U

4шт.

280954

NUT,3/4"-10, G5

8шт.

2

487220R1

BRACKET ASSY, guide fin

2шт.

3

487218R1

YOKE ASSY

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

PO2041X

COLLAR

W/SET SCREW, pressure rod

4шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-rt set

4шт.

5

SA2017

SPRING

pressure

2шт.

6

523080R92

SUPPORT

ARM ASSY, support

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 C-Z hex-hd mach

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

7

522054R1

ECCENTRIC

NUT, eccentric

4шт.

8

17694R1

AXLE, 5/8 x 8 in. hex-hd mach bolt

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

9

478436R1

DISC

BLADE, rolling guide fin

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

8шт.

527807R1

WASHER, 13/32 x 1 x 11 ga

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

10

ST503

BALL BEARING,0.629" ID x 47" OD x 0.5512"

BEARING ASSY, ball

4шт.

11

478435R1

SPACER

bearing

2шт.

12

478433R1

HUB

rolling guide fin

2шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 str lub, in hub

2шт.
