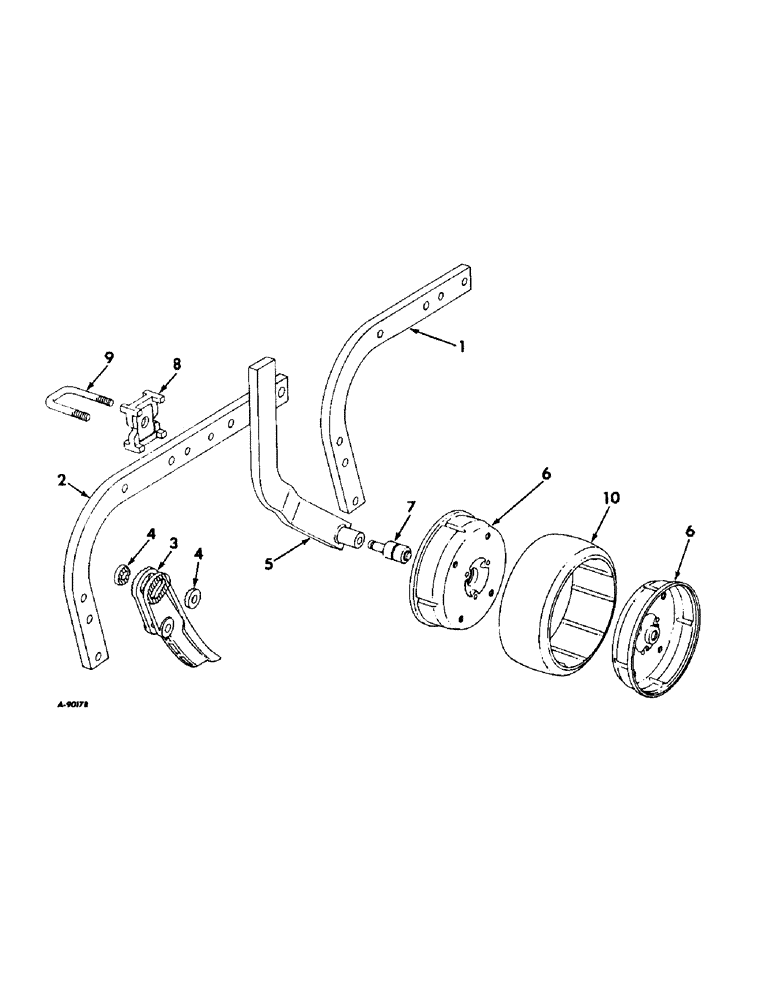

Запчасти Case IH 43 (D-06) - BEAM AND SHANK W/GAUGE WHEELS

1

487237R1

BEAM

short, unit A and B 5 used, unit C 9 used

1шт.

2

487238R1

BEAM, long, unit A 2 used, unit B and C 4 used

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Unit A 7 used, Unit B 9 used, Unit C 13 used Hex, 3/4"-10 x 3", G5

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap, unit A 7 used, unit B 9 used, unit C 13 used

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z, unit A 12 used, unit B 16 used, unit C 24 used

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", Unit A 12 used; Unit B 16 used; Unit C 24 used

1шт.

280954

NUT,3/4"-10, G5

unit A 12 used, unit B 16 used, unit C 24 used 3/4"-10, G5

1шт.

3

487239R1

LEVER

SHANK, unit A 7 used, unit B 9 used, unit C 13 used

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 C-Z sq-nk crg, unit A 14 used, unit B 18 used

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z, unit A 14 used, unit B 18 used

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., unit A 14 used, unit B 18 used

1шт.

19047R1

CARRIAGE BOLT,#3, 7/16" - 14 x 2 3/4", Gr 2

BOLT, 7/16 x 2-3/4 plow type 1, unit C 26 used

1шт.

188755R1

WASHER

15/32 x 1-1/2 x 11 ga C-Z, unit C 26 used

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex., unit C 26 used

1шт.

4

523011R1

WASHER

serrated, unit A 12 used, unit B 16 used, unit C 24 used

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap, unit A 7 used, unit B 9 used, unit C 13 used

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 C-Z hex-hd cap, unit A 7 used, unit B 9 used, unit C 13 used

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Unit A 12 used, Unit B 16 used, Unit C 24 used 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., unit A 12 used, unit B 16 used, unit C 25 used

1шт.

5

487240R2

ARM

ASSY, gauge wheel, unit A 7 used, unit B 9 used, unit C 13 used

1шт.

222502

SCREW

3/8-16 x 3/8 hex-soc-hd-f-pt set, unit A 7 used, unit B 9 used, unit C 13 used

1шт.

6

526768R1

WHEEL

RIM, gauge wheel, unit A 12 used, unit B 16 used, unit C 24 used

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach, unit A 49 used, unit B 63 used, unit C 91 used

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Unit A - 49 used, Unit B - 63 used, Unit C - 91 used 5/16"

1шт.

120376

NUT,5/16"-18, G5

Unit A 49 used; Unit B 63 used; Unit C 91 used 5/16"-18, G5

1шт.

7

ST667

BEARING

ASSY, gauge wheel ball, unit A 7 used, unit B 9 used, unit C 13 used

1шт.

8

487242R3

BLOCK

clamp, unit A 7 used, unit B 9 used, unit C 13 used

1шт.

9

522572R2

BOLT,U, 1/2" - 13 x 3 3/16"

arm U, unit A 7 used, unit B 9 used, unit C 13 used

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Unit A 12 used, unit B 16 used, unit C 24 used 1/2"-13, G5

1шт.

10

516492R1

TYRE/TIRE

TIRE, 4 x 12 semi pneumatic, unit A 7 used, unit B 9 used, unit C 13 used

1шт.
