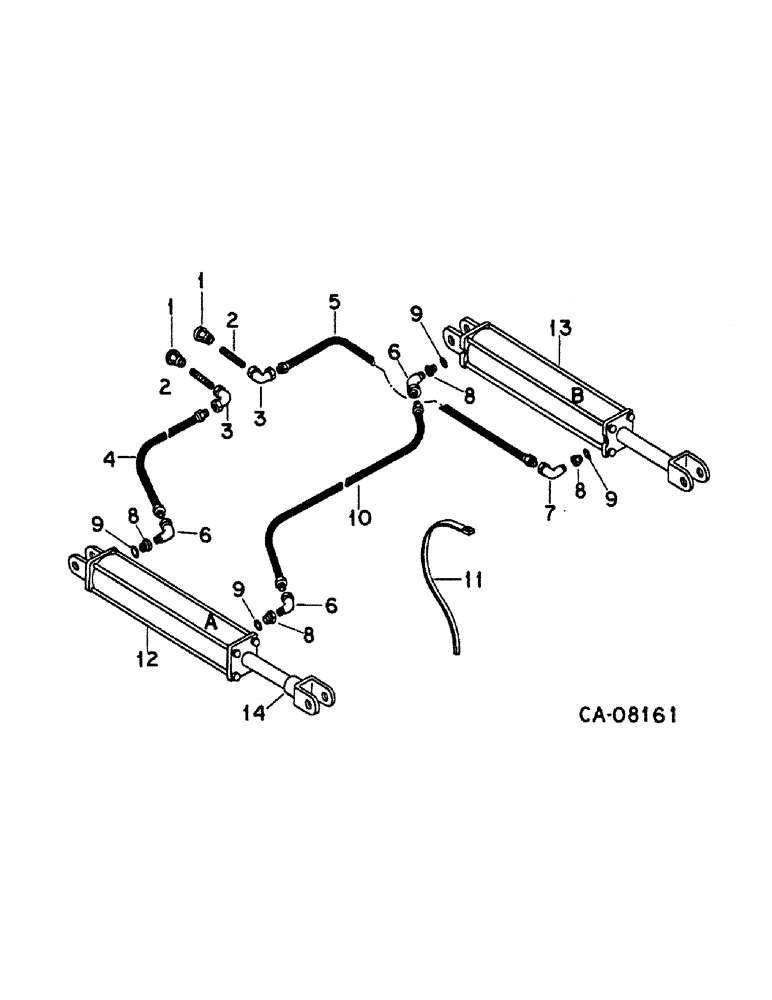

Запчасти Case IH 365 (D-26) - HYDRAULIC CYLINDERS AND CONNECTORS DEPTH CONTROL, NON FOLD (08) - HYDRAULICS

1

444114

COUPLING,1/2"-14 NPTF x 3/8"-18 NPTF

1/2 to 3/8 plng auto pipe

2шт.

2

27937R1

PIPE,Nipple, 3/8" NPT x 4"

NIPPLE, 3/8 x 4 pln long pipe

2шт.

3

444070

ELBOW,90 Degree, 3/8"-18 NPTF, Fem, Brass

3/8-18 pln auto 90D pipe

2шт.

4

1256447C1

HYDRAULIC HOSE

HOSE, 3/8 x 72 in. hydraulic

1шт.

5

1265750C1

HYDRAULIC HOSE,0.38" ID x 84.00", SAE 100R7

1шт.

6

444056

ELBOW

3/8-18 pln auto 45D pipe street

3шт.

7

444042

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

3/8-18 pln auto 90D pipe street

1шт.

8

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER, 3/4-16 male x 3/8-18 NPTF female, part of cylinder assy

4шт.

9

1265751C1

HOSE

3/8 x 132 in. hydraulic

1шт.

10

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 class 6, part of cylinder assy

4шт.

11

58556C1

CABLE TIE

TIE, wrap 14 in.

4шт.

12

1923519C91

CYLINDER

ASSY, 4 x 8 in. phasing hyd, labeled A, note, order cylinder assy 85031C91

1шт.

80117C2

SEAL KIT

cylinder o-ring and seal service

1шт.

12

85031C91

CYLINDER ASSY.

CYLINDER ASSY, 4 x 8 in. phasing hyd, labeled A, note

1шт.

85030C91C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

86990290C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

80117C2

SEAL KIT

cylinder o-ring and seal service

1шт.

13

1923518C91

CYLINDER

ASSY, 3-3/4 x 8 in. phasing hydraulic, labeled B, note, order cylinder assy, 85030C91

1шт.

80115C2

SEAL KIT

KIT, cylinder o-ring and seal service

1шт.

13

85030C91

CYLINDER ASSY.

CYLINDER ASSY, 3-3/4 x 8 in. phasing hydraulic, labeled B, note

1шт.

80115C2

SEAL KIT

KIT, cylinder o-ring and seal service

1шт.

14

1256657C1

KIT

stop collar

1шт.
