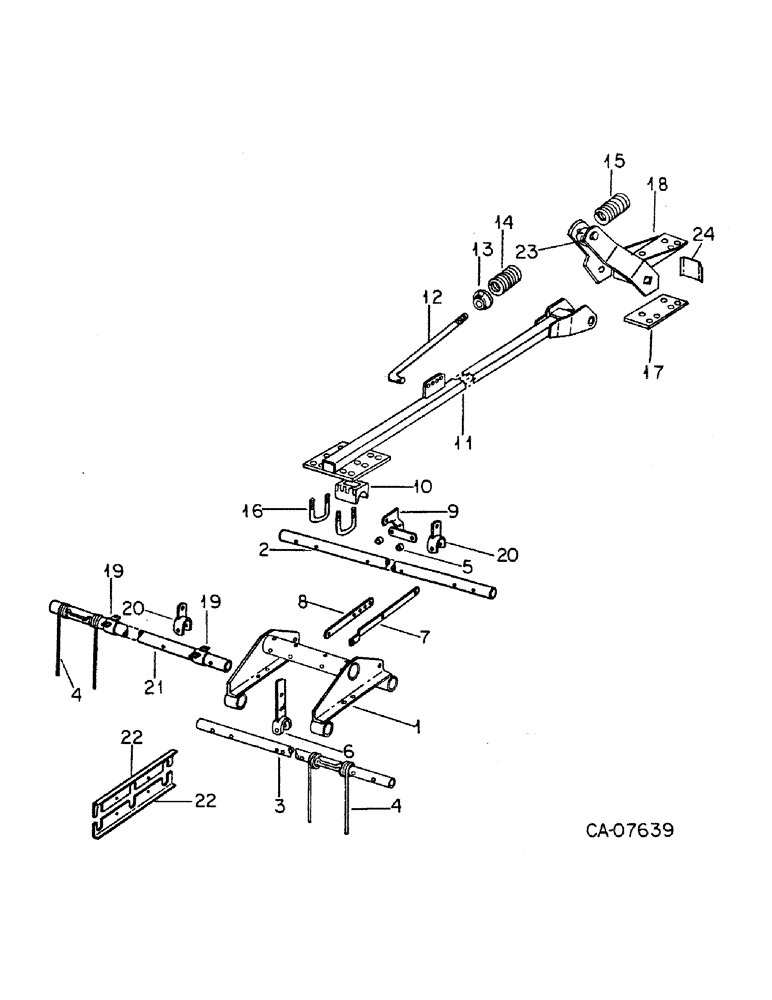

Запчасти Case IH 365 (D-20) - MULCHER ATTACHMENT, 3 BAR, SERIAL NO. 10370 AND BELOW (09) - CHASSIS

1

490549R1

FRAME

2 for 13ft 8in. & 25ft 8in. size, 1 for 16ft 4in. & 19ft 8in. size

1шт.

1

485615R2

FRAME

2 for 16ft 4in. size

1шт.

1

485614R2

FRAME

2 for 19ft 8in. size

1шт.

1

485616R2

FRAME

1 for 19ft 8in. size, 4 for 22ft 8in. size, 2 for 25ft 8in. size

1шт.

2

490550R1

TUBE

BAR, 1st tooth, 2 for 13ft 8in. & 25ft 8in. size, 1 for 16ft 4in. & 19ft 8in. size

1шт.

2

485596R1

TUBE

BAR, 1st tooth, 2 for 16ft 4in. size

1шт.

2

485589R1

TUBE

BAR, 1st tooth, 2 for 19ft 8in. size

1шт.

2

485599R1

TUBE

BAR, 1st tooth, 1 for 19ft 8in. size, 4 for 22ft 8in. size, 2 for 25ft 8in. size

1шт.

3

490551R1

TUBE

BAR, 3rd tooth, 2 for 13ft 8in. & 25ft 8in. size, 1 for 16ft 4 in. & 19ft 8in. size

1шт.

3

485597R1

TUBE

BAR, 3rd tooth, 2 for 16ft 4in. size

1шт.

3

485590R1

TUBE

BAR, 3rd tooth, 2 for 19ft 8in. size

1шт.

3

485600R1

TUBE

BAR, 3rd tooth, 1 for 19ft 8in. size, 4 for 22ft 8in. size, 2 for 25ft 8in. size

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), , 4 per frame 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

36 for 13ft 8in. size, 42 for 16ft 4in. size, 51 for 19ft 8in. size, 60 for 22ft 8in. size, 66 for 25ft 8in. size

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 2 per tooth

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock, 2 per tooth

2шт.

5

485591R1

SPACER

BUSHING, tooth, 4 for 19ft 6in. size

1шт.

6

485592R1

ARM

HANDLE, 2 for 13ft 8in. & 25ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in. & 22ft 8in. size

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 x 2-3/4 type 5, 2 per handle

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock, 2 per handle

2шт.

7

485593R1

SUPPORT

REACH, handle, 2 for 13ft 8in. size. 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. & 25ft 8in. size

1шт.

8

485594R1

BAR

REACH, adjusting, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. & 25ft 8in. size

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1. hd type 1, 8 for 13ft 8in. size, 12 for 16ft 4in. size, 16 for 19ft 8in., 22ft 8in. & 25ft 8in. size

1шт.

607891R1

WASHER

.469 x 1.000 x .054, 1 per pin

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), , 1 per pin 5/32" x 1"

1шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

9

485595R1

SUPPORT

POST, front, 2 for 19ft 8in. size

1шт.

10

490687R1

CLAMP

casting, 4 for 13ft 8in. size, 6 for 16ft 4in. size, 8 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

11

812223C1

ARM

carrier, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

18741R1

BOLT

3/4 x 6 crg type 1, 1 per arm

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex lock, 1 per arm

1шт.

12

596580R1

ROD

compression, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , 1 per rod 1/4" x 1 1/2"

1шт.

21753R1

WASHER

.781 x 1.500 x .054 znd, 1 per rod

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam, 1 per rod

1шт.

13

1431BX

COLLAR CLAMP

COLLAT W/SET SCREW, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 pln c/pt sq/hd set, 1 per clamp

1шт.

14

596574R1

SPRING

compression upper, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

15

485611R1

SPRING

compresion lower, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

16

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT, 8 for 13ft 9in. size, 12 for 16ft 4in. size, 16 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

120384

WASHER,1/2"

LOCK, , 2 per u-bolt 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per u-bolt 1/2"-13, G5

2шт.

17

812225C1

BAR

CLAMP, mounting, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in. 22ft 8in. and 25ft 8in. size

1шт.

461723R1

BOLT,5/8" - 11 x 6", Grade 5

5/8-11 x 6 hex hd special, 4 per clamp

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 4 per clamp 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, 4 per clamp

4шт.

18

812224C1

BRACKET

attaching, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

19

485063R1

BUSHING, center bar, 4 for 13ft 8in. size, 6 for 16ft 4in. size, 8 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1, 2 per bushing

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 2 per bushing 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2 per bushing 3/8"-16, G5

2шт.

20

485601R1

ARM

POST, 4 for 13ft 8in. size, 6 for 16ft 4in. & 19ft 8in. size, 8 for 22ft 8in. & 25ft 8in. size

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 x 2-3/4 type 5, 1 per post

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock, 1 per post

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1.500 pln hd type 1, 1 per post

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), , 1 per post 5/32" x 1"

1шт.

21

485604R1

TUBE

BAR, 2nd tooth, 2 for 16ft 4in. size

1шт.

21

490552R1

TUBE

BAR, 2nd tooth, 2 for 13ft 8in. & 25ft 8in. size, 1 for 16ft 4in. & 19ft 8in. size

1шт.

21

485602R1

TUBE

BAR, 2nd tooth, for 19ft 8in size

1шт.

21

485605R1

TUBE

BAR, 2nd tooth, 1 for 19ft 8in. size, 4 for 22ft 8in. size, 2 for 25ft 8in. size

1шт.

22

485598R1

SUPPORT

RAIL, center, 4 for 13ft 8in. & 19ft 8in. size, 6 for 16ft 4in. size, 8 for 22ft 8in. & 25ft 8in. size

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1, 1 per rail

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per rail 5/16"

1шт.

120376

NUT,5/16"-18, G5

1 per rail 5/16"-18, G5

1шт.

23

1256635C1

TRUNNION

2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

24

1256634C1

SPACER

2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.
