(D-19) - MULCHER, 2 BAR COIL TINE, HEAVY DUTY, CARRIER ARMS, SERIAL

Запчасти Case IH 365 (D-19) - MULCHER, 2 BAR COIL TINE, HEAVY DUTY, CARRIER ARMS, SERIAL (09) - CHASSIS

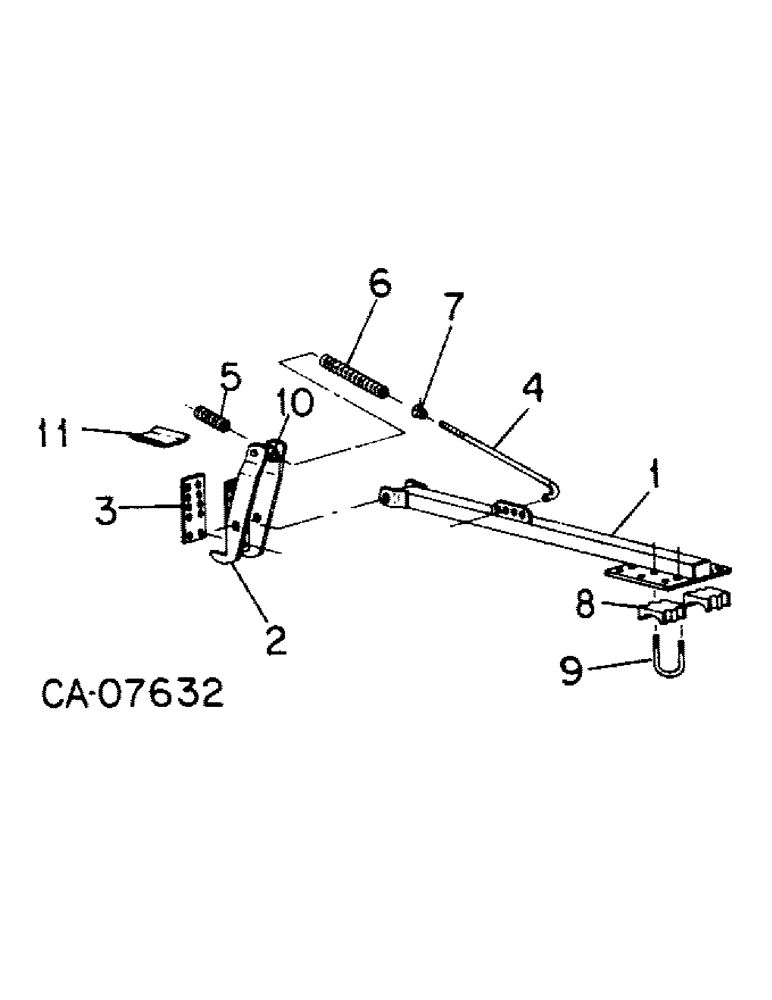

Схема запчастей Case IH 365 - (D-19) - MULCHER, 2 BAR COIL TINE, HEAVY DUTY, CARRIER ARMS, SERIAL (09) - CHASSIS
8
11
4
7
3
2
1
9
5
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

812223C1

ARM

carrier, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25 ft 8in. size

1шт.

2

812224C1

BRACKET

attaching, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25 ft. size

1шт.

18741R1

BOLT

3/4 x 6 crg type 1, 1 per each bracket

1шт.

473224R1

WASHER

NUT, 3/4-10 hex lock, 1 per each bracket

1шт.

3

812225C1

BAR

bracket clamp, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

461723R1

BOLT,5/8" - 11 x 6", Grade 5

5/8-11 x 6in. hex special

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 4 per bar 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, 4 per bar

4шт.

4

596580R1

ROD

compression, 16 for 13ft 8in. size, 24 for 16ft 4in. size, 32 for 19f 8in., 22ft 8in. and 25ft 8in. size

1шт.

21753R1

WASHER

.781 x 1.500 x .054 znd, 1 per rod

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , 1 per rod 1/4" x 1 1/2"

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5, 1 per rod

1шт.

5

485611R1

SPRING

compression upper, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 6in. size

1шт.

6

596574R1

SPRING

compression lower, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25 ft 8in. size

1шт.

7

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 89in. and 25ft 8in. size

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 pln c/pt sq/hd set, 1 per collar

1шт.

8

490687R1

CLAMP

casting, 4 for 13ft 8in. size, 6 for 16ft 4in. size, 8 for 19ft 8in., 22ft 8in. and 25ft 8in.size

1шт.

9

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT, 2 per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 per clamp 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per clamp 1/2"-13, G5

2шт.

10

1256635C1

TRUNNION

2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

11

1256634C1

SPACER

2 for 13ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.
