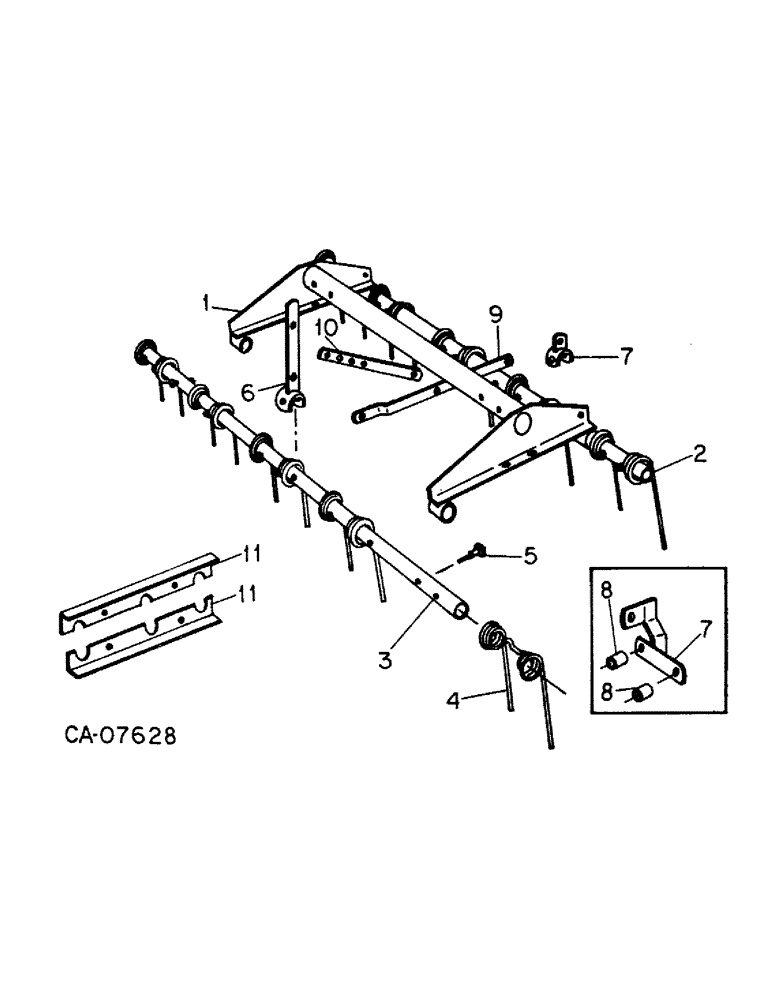

Запчасти Case IH 365 (D-18) - MULCHER, 2 BAR COIL TINE, HEAVY DUTY, MULCHER FRAME & TOOTH (09) - CHASSIS

1

490549R1

FRAME

2 for 13ft 8in. & 25ft 8in. size, 1 for 16ft 4in. & 19ft 8in. size

1шт.

1

485615R2

FRAME

2 for 16ft 4in. size

1шт.

1

485614R2

FRAME

2 for 19ft 8in. size

1шт.

1

485616R2

FRAME

1 for 19ft 8in. size, 4 for 22ft 8in. size, 2 for 25ft 8in. size

1шт.

2

490550R1

TUBE

BAR, front tooth, 2 for 13ft 8in. & 25ft 8in., 1 for 16ft 4in. & 19ft 8in.

1шт.

2

485596R1

TUBE

BAR, front tooth, 2 for 16ft 4in. size

1шт.

2

485589R1

TUBE

BAR, front tooth, 2 for 19ft 8in. size

1шт.

2

485599R1

TUBE

BAR, front tooth, 1 for 19ft 8in. size, 4 for 22ft 8in. size, 2 for 25ft 8in. size

1шт.

3

490551R1

TUBE

BAR, rear tooth, 2 for 13ft 8in. & 25ft 8in. size, 1 for 16 ft 4in. & 19ft 8in. size

1шт.

3

485597R1

TUBE

BAR, rear tooth, 2 for 16ft 4in. size

1шт.

3

485590R1

TUBE

BAR, rear tooth, 2 for 19ft 8in. size

1шт.

3

485600R1

TUBE

BAR, rear tooth, 1 for 19ft 8in. size, 4 for 22ft 8in. size, 2 for 25ft 8in. size

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), , 8 for 13ft 8in. size; 12 for 16ft 4in. size; 16 for 19ft 8in., 22ft 8in. and 25ft 8in. size 1/4" x 2 3/4"

1шт.

4

72901C1

TOOTH

24 for 13ft 8in. size, 28 for 16ft 4in. size, 34 for 19ft 8in. size, 40 for 22ft 8in. size, 44 for 25ft 8in. size

1шт.

5

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 2 per tooth

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock, 2 per tooth

2шт.

6

485592R1

ARM

HANDLE, 2 for 13ft 8in. & 25ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in. & 22ft 8in. size

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 x 2-3/4 type 5

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock, 1 per handle

1шт.

7

485601R1

ARM

POST, 2 for 13ft 8in. size, 3 for 16ft 4in. size, 2 for 19ft 8in. size, 4 for 22ft 8in. & 25ft 8in. size

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 x 2-3/4 type 5, 1 per post

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock

1шт.

7

485595R1

SUPPORT

POST, front, 2 for 19ft 8in. size

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

8

485591R1

SPACER

BUSHING, 4 for 19ft 8in. size

1шт.

9

485593R1

SUPPORT

REACH, handle, 2 for 13ft 8in. & 25ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in. & 22ft 8in. size

1шт.

10

485594R1

BAR

REACH, adjusting, 2 for 13ft 8in. & 25ft 8in. size, 3 for 16ft 4in. size, 4 for 19ft 8in. & 22ft 8in. size

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1. hd type 1, 8 for 13ft 8in. & 25ft 8in. size, 12 for 16ft 4in. size, 16 for 19ft 8in. size

1шт.

607891R1

WASHER

.469 x 1.000 x .054, 1 per pin

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), , 1 per pin 5/32" x 1"

1шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

11

485598R1

SUPPORT

RAIL, center, 4 for 13ft 8in. & 19ft 8in. size, 6 for 16ft 4in. size, 8 for 22ft 8in. & 25ft 8in. size

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1, 1 per rail

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per rail 5/16"

1шт.

120376

NUT,5/16"-18, G5

1 per rail 5/16"-18, G5

1шт.
