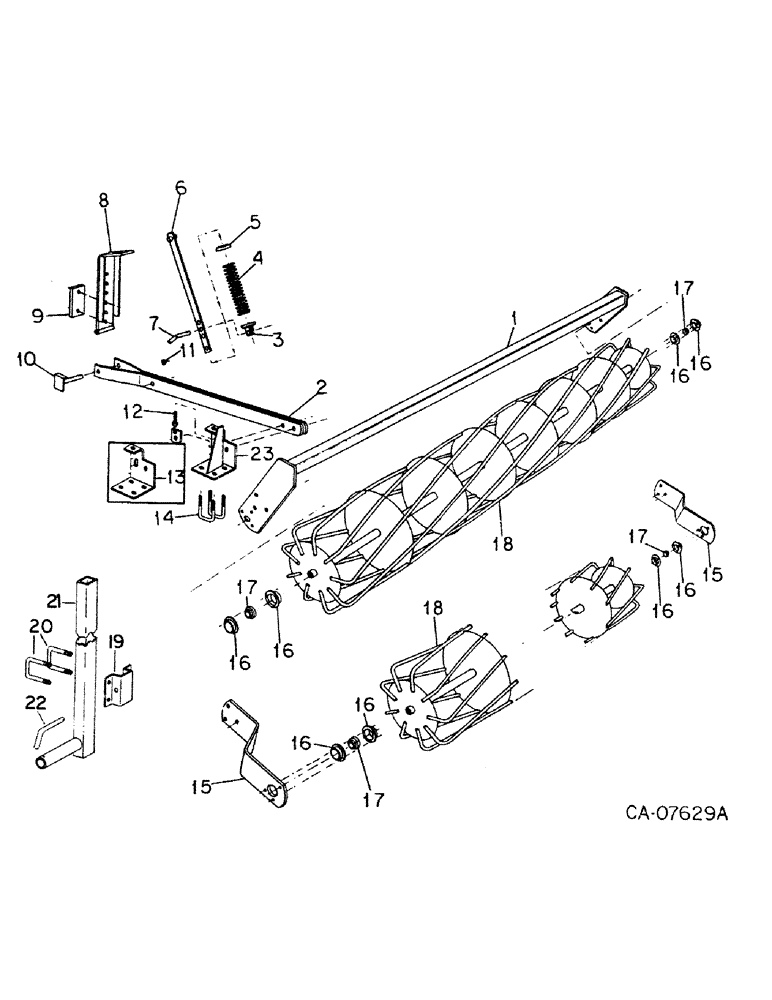

Запчасти Case IH 365 (D-14) - ROTARY MULCHER, DOUBLE UNITS (09) - CHASSIS

1

1256477C1

CARRIER

basket 48 in., 2 for 13 ft 8 in., 3 for 16 ft 4 in. & 19 ft 8 in., 4 for 22 ft 8 in., 1 for 25 ft 8 in.

1шт.

1

1265739C1

CARRIER

basket 36 in., 1 for 16 ft 4 in., 2 for 19 ft 8 in.

1шт.

1

1256479C1

CARRIER

basket 60 in., 1 for 13 ft 8 in. & 22 ft 8 in., 4 for 25 ft 8 in.

1шт.

1

1256481C1

CARRIER

basket 72 in., 2 for 16 ft 4 in. & 22 ft 8 in., 1 for 19 ft 8 in., 3 for 25 ft 8 in., Serial Range: -10370

1шт.

1

1256483C1

CARRIER

basket 84 in., 2 on 13ft 8in. size, 1 on 25ft 8in. size, Serial Range: -10370

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2 per carrier Hex, 3/4"-10 x 1 3/4", G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 per carrier

1шт.

2

1256467C1

ARM

, Serial Range: -10370

1шт.

2

1265735C1

ARM

6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in., Start Serial: 10371

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5, 3 per arm

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 PHC p/t lock type 5, 3 per arm

1шт.

3

1256471C2

CAP

spring, 6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

4

1256472C1

SPRING

6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

5

80057C1

CAP

spring, 6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

6

1256468C1

GUIDE

spring, 6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

7

80056C1

PIN

6 for 13ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

545245R1

NO LONGER SERVICED

PIN, quick attachable cot., 6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

8

1256466C1

ARM

mounting, 6 for 13 ft 8 in., 8 for 16 ft 8 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

9

1256476C1

BAR

flat, 6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

271572

O-RING,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 pln type 5, 2 per bar

2шт.

12574

WASHER, 5/8 lock, 2 per bar

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, 2 per bar

2шт.

10

1256470C1

PIN

welded

1шт.

10

1265738C1

PIN

5/8 x 1-7/8 C-Z headed, 6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), , 1 per pin 1/4" x 2"

1шт.

11

1256474C1

BUSHING

6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in., Serial Range: -10370

1шт.

12

1265736C1

ADJUSTMENT SCREW

adjusting, 6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per screw 1/2"-13, G5

1шт.

13

PIVOT, adjusting, order pivot, 1265737C1, 6 for 13 ft 8 in., 8 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in., Serial Range: -10370

1шт.

14

1256475C2

U-BOLT,7/16" - 14 x 2.03" W x 3" L

12 for 13 ft 8 in., 16 for 16 ft 4 in., 20 for 19 ft 8 in., 22 ft 8 in & 25 ft 8 in.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 2 per u-bolt 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5, 2 per u-bolt

2шт.

15

1256485C1

BRACKET

offset, 6 on 13ft 8in. size, 8 on 16ft 4in. size, 10 on 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5, 3 per bracket

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per bolt 7/16"

1шт.

271501

SOCKET

NUT, 7/16 type 5, 1 per bolt

1шт.

16

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE, bearing, 24 on 13ft 8in. size, 32 on 16ft 4in. size, 40 on 19ft 8in. & 22ft 8in. and 25ft 8in. size

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5, 36 on 13ft 8in. size, 48 on 16ft 4in. size, 60 on 19ft 8in., 22ft 8in. and 25ft 6in size

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

17

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ball, 12 on 13ft 8in. size, 16 on 16ft 4in. size, 20 on 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

18

1256478C1

CONTROL

BASKET, 48 in., 4 for 13 ft 8 in., 6 for 16 ft 4 in. & 19 ft 8 in., 8 for 22 ft 8 in., 2 for 25 ft 8 in.

1шт.

18

1256480C1

CONTROL

BASKET, 60 in., 2 for 13 ft 8 in. & 22 ft 8 in., 8 for 25 ft 8 in.

1шт.

18

1256482C1

CONTROL

BASKET, 72 in., 4 on 16ft 4in. & 22ft 8in. size, 2 on 19ft 8in. size, 6 on 25ft 8in. size, Serial Range: -10370

1шт.

18

1256484C1

CONTROL

BASKET, 84 in., 4 on 13ft 8in. size, 2 on 25ft 8in. size, Serial Range: -10370

1шт.

18

1265740C1

CONTAINER

BASKET, 36 in., 2 for 16 ft 4 in., 4 for 19 ft 8 in.

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2 per basket Hex, 3/4"-10 x 1 3/4", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 per basket

2шт.

19

1265765C1

HOUSING

stand

1шт.

20

1265767C1

U-BOLT,1/2" - 13 x 2.56" W x 3.6" L

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21

1265766C1

STAND

ASSY, jack

1шт.

22

1265768C1

PIN

jack stand

1шт.

480523R1

HAIR PIN COTTER

quick attachable, jack stand

1шт.

23

1265737C1

PIVOT

adjusting, replaces 1256473C1, 6 for 16 ft 4 in., 10 for 19 ft 8 in., 22 ft 8 in. & 25 ft 8 in., Start Serial: 10371

1шт.
