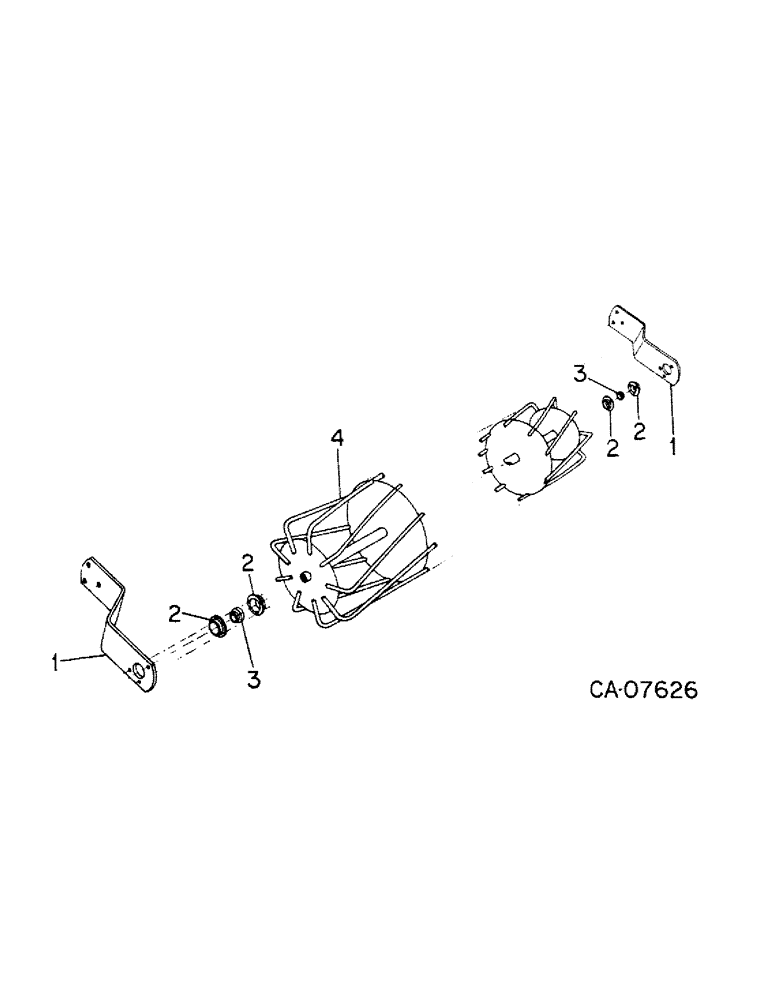

Запчасти Case IH 365 (D-13) - ROLLING MULCHER, ADD ON (09) - CHASSIS

1

1256485C1

BRACKET

offset, 4 on 13ft 8in. size, 6 on 16ft 4in. size, 8 on 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5, 3 per bracket

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per bolt 7/16"

1шт.

271501

SOCKET

NUT, 7/16 type 5, 1 per bolt

1шт.

2

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE, bearing, 8 on 13ft 8in. size, 12 on 16ft 4in. size, 16 on 22ft 8in. & 25ft 8in. size

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5, 3 per flange

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

3

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ball, 4 on 13ft 8in. size, 6 on 16ft 8in. size, 8 on 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

4

1256478C1

CONTROL

BASKET, 48 in., 2 on 19ft 8in. size

1шт.

4

1256480C1

CONTROL

BASKET, 60 in., 1 on 16ft 8in. & 22ft & 8in. size

1шт.

4

1256482C1

CONTROL

BASKET, 72 in., 2 on 13ft 8in., 16ft 4 in. and 25ft 6in size

1шт.

4

1256484C1

CONTROL

BASKET, 84 in., 2 on 25ft 8in. size

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2 per basket Hex, 3/4"-10 x 1 3/4", G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per bolt

1шт.
