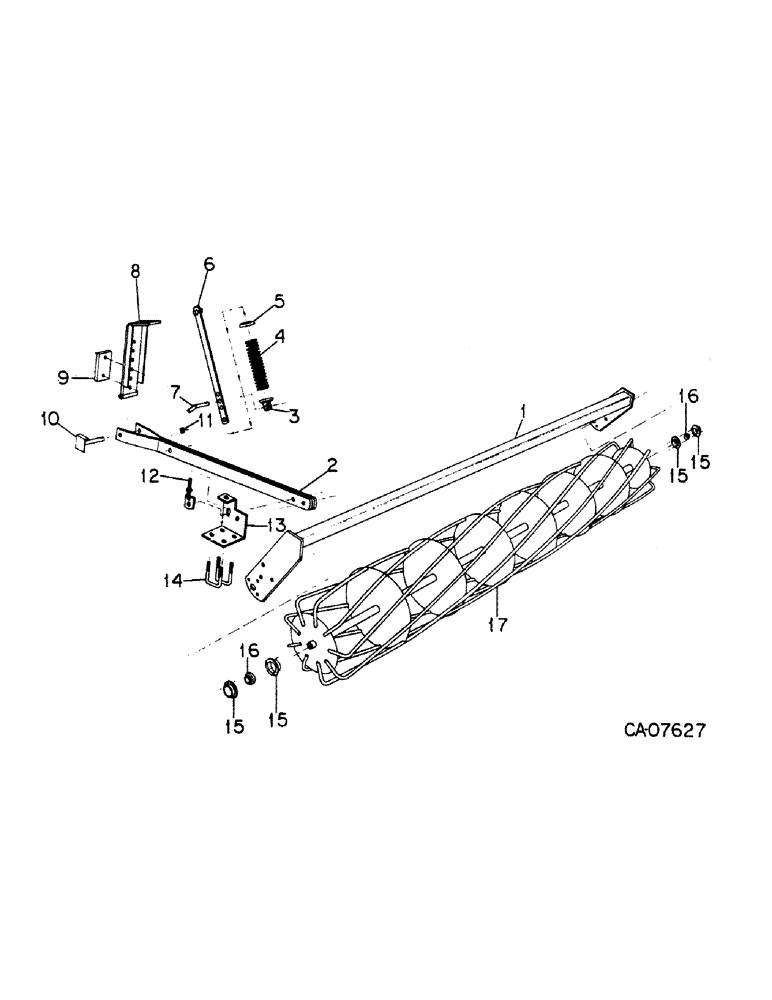

Запчасти Case IH 365 (D-11) - ROTARY MULCHER, SERIAL NO. 10370 AND BELOW (09) - CHASSIS

1

1256477C1

CARRIER

basket 48 in., 2 on 19 ft 8 in. size

1шт.

1

1256479C1

CARRIER

basket 60 in., 1 on 16 ft 4 in. & 22 ft 6 in. size

1шт.

1

1256481C1

CARRIER

basket 72 in., 2 on 16 ft 4 in. size, 2 on 19 ft 8 in. size, 3 on 22 ft 8 in. size, 2 on 25 ft 8 in. size

1шт.

1

1256483C1

CARRIER

basket 84 in., 2 on 13 ft 8 in. size, 2 on 25 ft 8 in. size

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2 per carrier Hex, 3/4"-10 x 1 3/4", G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 per carrier

1шт.

2

1256467C1

ARM

6 on 13ft 8in. & 16ft 4in. size, 8 on 19ft 8 in. & 22ft 8in. size, 10 on 25 ft 8 in. size

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5, 3 per arm

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 PHC p/t lock type 5, 3 per arm

1шт.

3

1256471C2

CAP

spring, 6 on 13ft 8 in. & 16ft 4 in. size, 8 on 19ft 8in.. & 22ft 8in. size, 10 on 25 ft 6in. size

1шт.

4

1256472C1

SPRING

6 on 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 25 ft 8 in. size

1шт.

5

80057C1

CAP

spring, 6 on 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 25 ft 8in. size

1шт.

6

1256468C1

GUIDE

spring, 6 ON 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 25ft 8in. size

1шт.

7

80056C1

PIN

spring guide, 6 on 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 25ft 8in. size

1шт.

545254R1

PIN

quick attachable cot., 1 per pin

1шт.

8

1256466C1

ARM

mounting, 6 on 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 25 ft 8in. size

1шт.

9

1256476C1

BAR

flat, 6 o 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 25ft 8in. size

1шт.

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 pln type 5, 2 per bar, Course Threads

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per bolt 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, 1 per bolt

1шт.

10

1256470C1

PIN

6 on 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 25ft 8in. size

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), , 1 per pin 1/4" x 2"

1шт.

11

1256474C1

BUSHING

6 on 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 25ft 8in. size

1шт.

12

1265736C1

ADJUSTMENT SCREW

adjusting, replaces 1256469C1, 6 on 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 25ft 8in. size

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per adj screw 1/2"-13, G5

1шт.

13

1265737C1

PIVOT

adjusting, replaces 1256473C1, 6 on 13ft 8in. & 16ft 4in. size, 8 on 19ft 8in. & 22ft 8in. size, 10 on 2ft 8in. size

1шт.

14

1256475C2

U-BOLT,7/16" - 14 x 2.03" W x 3" L

12 on 13ft 8in. & 16ft 4in. size, 16 on 19ft 8in. & 22ft 8in. size, 20 on 25ft size

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 2 per u-bolt 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5, 2 per u-bolt

1шт.

15

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE, bearing, 8 on 13ft 8in. size, 12 on 16ft 4in. size, 16 on 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5, 12 on 13ft 8in. size, 18 on 16ft 4in. size, 24 on 19ft 8in., 22ft 8in. and 25ft 8in. size

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

16

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ball, 4 on 13ft 8in. size, 6 on 16ft 4in. size, 8 on 19 ft 8in. 22ft 8in. and 25 ft 8in. size

1шт.

17

1256478C1

CONTROL

BASKET, 48 in., 2 on 19ft 8in.

1шт.

17

1256480C1

CONTROL

BASKET, 60 in., 1 on 16ft 4in. & IIft 8in. size

1шт.

17

1256482C1

CONTROL

BASKET, 72 in., 2 on 16ft 4in. 19ft 8in. and 25ft 8in. size, 3 on 22ft 8in. size

1шт.

17

1256484C1

CONTROL

BASKET, 84 in., 2 on 13ft 8in. and 25ft 8in. size

1шт.
