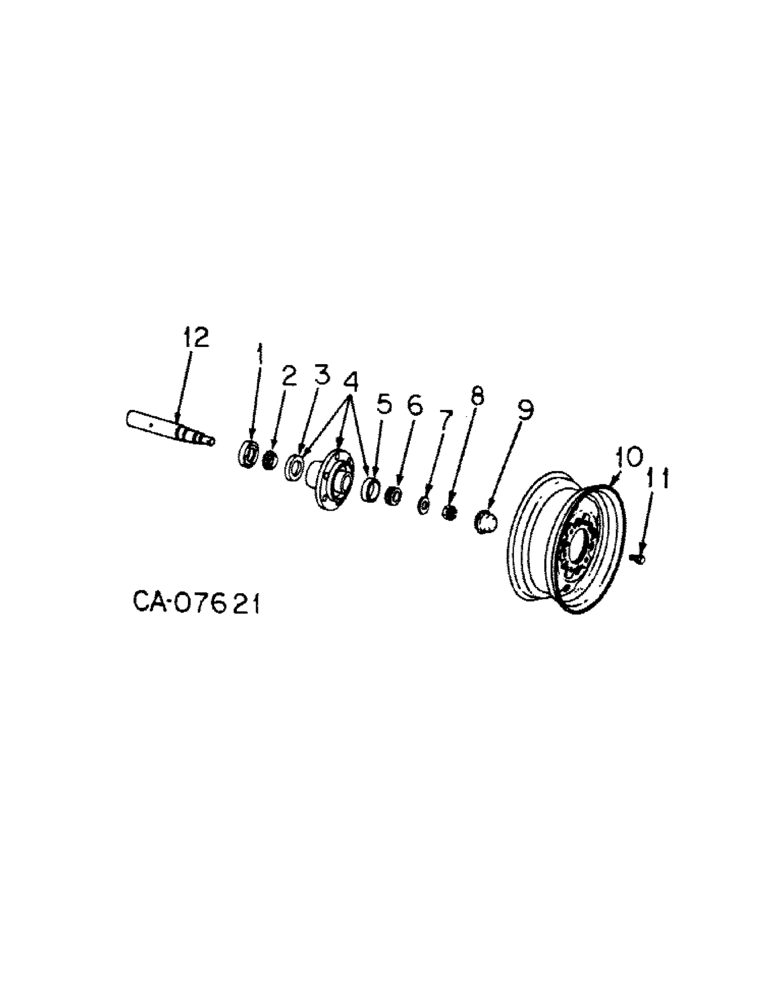

Запчасти Case IH 365 (D-10) - WHEEL AND HUB, QUANTITIES SHOWN ARE PER SET OF TWO WHEELS (09) - CHASSIS

1

56514C1

OIL SEAL

2шт.

1

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

inner cone

2шт.

3

478793R1

BEARING CUP

BEARING, inner cup

2шт.

4

62509C1

HUB

6 bolt w/cups

2шт.

5

651817R1

BEARING CUP

BEARING, outer cup

2шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, outer cone

2шт.

7

446266

WASHER,7/8" x 2" x .165"

.938 x 2.000 x .136

2шт.

8

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 NF plain slotted

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

9

62510C1

CAP

hub

2шт.

10

614424R91

WHEEL ASSY.

WHEEL, 15 x 6 lb

2шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

12шт.

12

1256423C1

SPINDLE

wheel

2шт.
