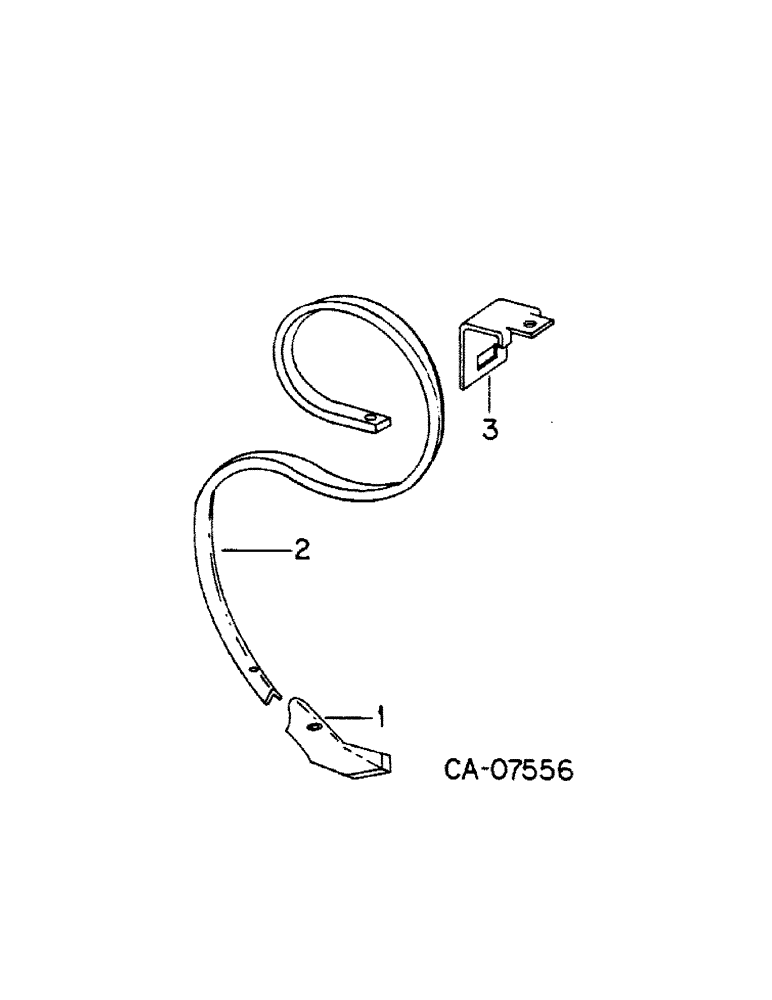

Запчасти Case IH 365 (D-10[A]) - TINE, CLAMP, POINT & SWEEP (09) - CHASSIS

1

64478C1

POINT

13 oz heavy duty reversible, note A

1шт.

1

1281302C1

SHOVEL

SWEEP, 2-1/2 in. vibra tine, note A, replaces 100365C1

1шт.

1

1251303C1

SWEEP, 4 in. vibra tine, note A, replaces 100366C1

1шт.

1

1281304C1

SHOVEL

SWEEP, 7 in. vibra tine, note A, replaces 100367C1

1шт.

138544C1

PLOW BOLT,3/8" - 16 x 1.58" Cl 5B

BOLT, #8 high strength plow, 1 used per point or sweep

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock, 1 used per bolt

1шт.

2

138584C1

TINE

45 for 16 ft 6 in. size. 53 for 19 ft 8 in. size, 61 for 22 ft 8 in. size, 69 for 25 ft 8 in. size, 37 for 13 ft 8 in. size

1шт.

3

138583C1

CLAMP

tooth, 1 per tine

1шт.

18702R1

BOLT,Short NK, 7/16"-14 x 4", G2

7/16 x 4 crg type 1, 1 per clamp

1шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, , 1 per clamp 7/16"-14, GB

1шт.
