(D-09) - JACK ASSEMBLY, FOR TRAILING MACHINES

Запчасти Case IH 365 (D-09) - JACK ASSEMBLY, FOR TRAILING MACHINES (09) - CHASSIS

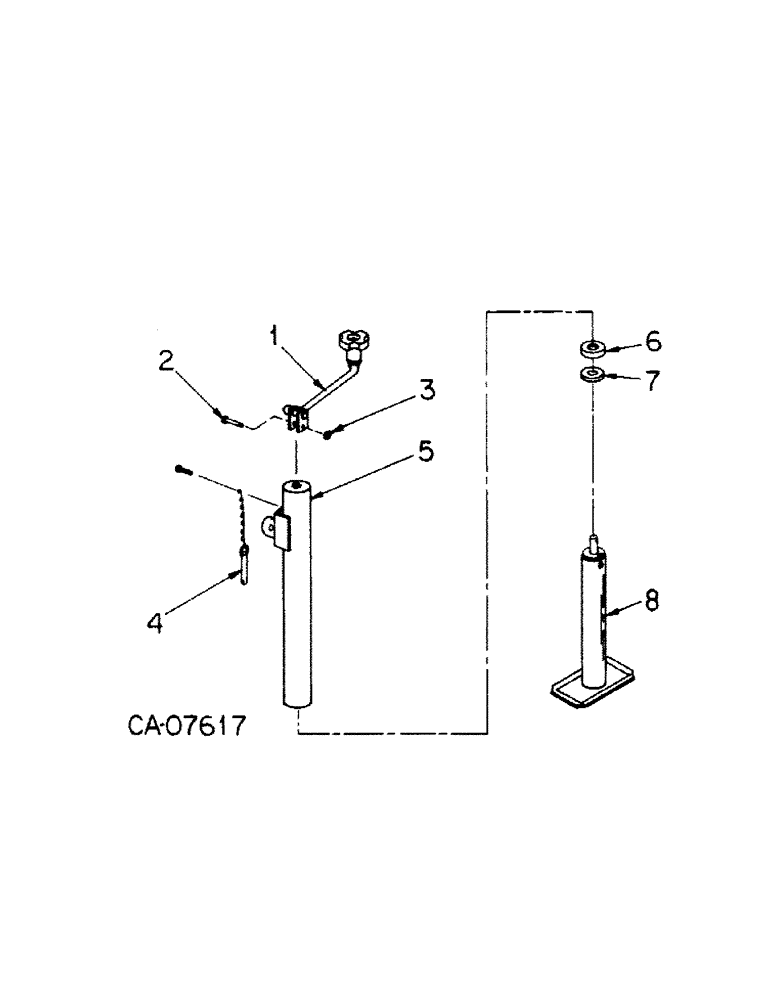

Схема запчастей Case IH 365 - (D-09) - JACK ASSEMBLY, FOR TRAILING MACHINES (09) - CHASSIS
8
1
2
5
6
3
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1256363C91

JACK ASSY.

JACK ASSEMBLY

1шт.

1

1256366C1

CRANK

1шт.

2

1256367C1

PIN

headed crank

1шт.

3

1256368C1

NUT

retaining

1шт.

4

1256369C1

CHAIN (AG)

CHAIN W/PIN

1шт.

480253R1

PIN, quick attachable cot.

1шт.

5

TUBE, outer, not serviced separately

1шт.

6

1256370C91

ROLLER BEARING,0.5" ID x 1.42" OD x 0.45"

BEARING, roller

1шт.

7

59113R1

WASHER

1шт.

8

TUBE, inner stake, not serviced separately

1шт.
