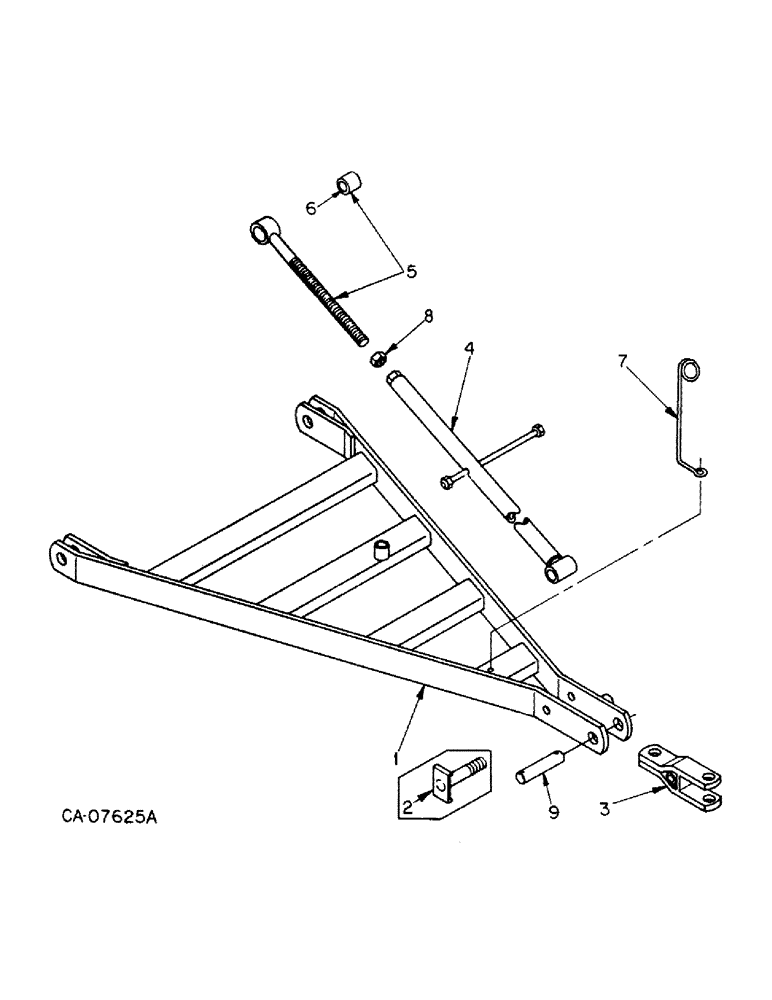

Запчасти Case IH 365 (D-07) - HITCH FRAME (09) - CHASSIS

1

1256414C3

TRAILER HITCH

HITCH, frame

1шт.

22839R1

SCREW,Hex, 1"-8 x 6 1/2", G5

BOLT, 1 x 6-1/2 type 5

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

26566R1

LOCK NUT

1 p/t lock type 5

1шт.

2

1256416C1

PIN

clevis

1шт.

3

1256415C2

CLEVIS

hitch

1шт.

4

1256417C2

TUBE

& SWIVEL

1шт.

5

1256418C1

ADJUSTMENT SCREW

W/BUSHING, serial no. 10370 and below

1шт.

5

1265741C1

ADJUSTMENT SCREW

ASSY, adjusting, serial no. 10371 and above

1шт.

6

1256630C1

BUSHING, serial no. 10370 and below

1шт.

7

460046R1

ROD

GUIDE, hose

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5

1шт.

446212

WASHER,7/16" x 7/8" x .083"

.438 x .875 x .064

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

8

272140

BOLT,Jam, 1 1/4"-7, G5

1-1/4 jam type 5

1шт.

9

1265707C2

PIN

1-1/2 stress proof

1шт.

19845R1

LOCK PIN,3/8" x 2 3/4", Slotted

Pin, 3/8" x 2 3/4", Slotted

2шт.
