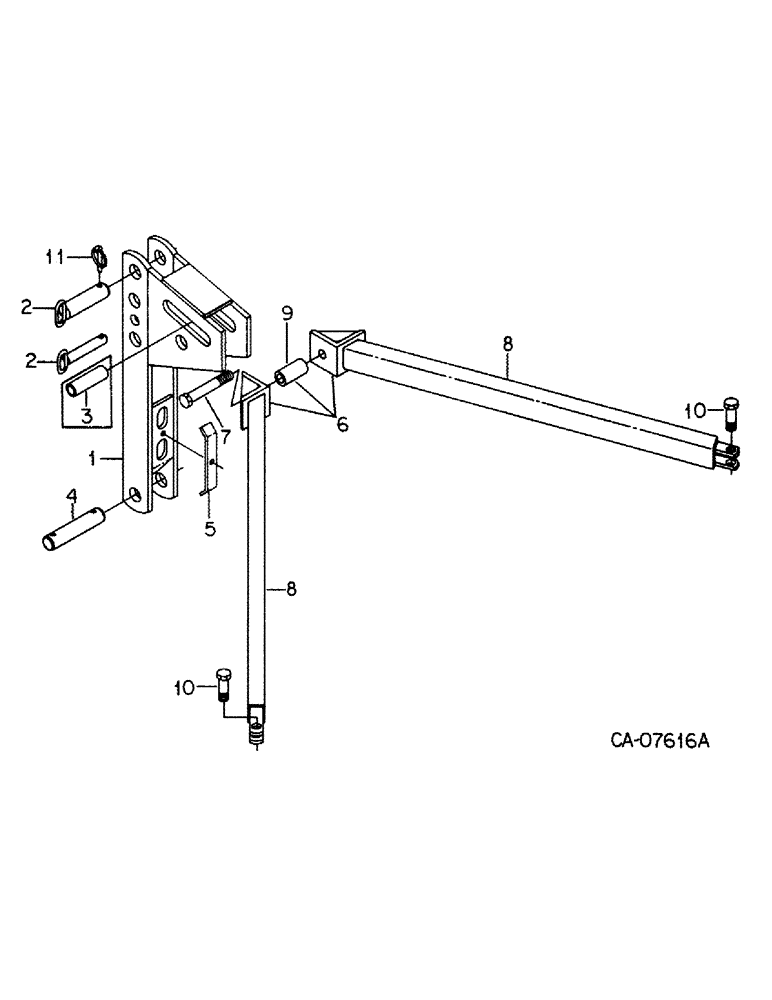

Запчасти Case IH 365 (D-06) - MAST AND STABILIZER (09) - CHASSIS

1

1256407C1

SUPPORT

MAST ASSY

1шт.

2

63133C2

PIN

mast 1 in. OD, cat II

1шт.

2

1256409C1

PIN

mast 1-1/4 in. OD, cat III

1шт.

3

1256410C1

BUSHING

mast to stabilizer, used only w/stabilizer, 1256413C1

1шт.

22837R1

SCREW

BOLT, 1 5-1/2 type 5

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

2шт.

26566R1

LOCK NUT

1 p/t lock type 5

1шт.

4

1256411C1

PIN

, Serial Range: mast-frame

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

5

1256412C1

CLAMP

hose

1шт.

180087

SPRING

5/16 x 2 type 5

1шт.

25077R1

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

6

1256413C2

STABILIZER

ASSY, composed of ref nos 6 thru 10

1шт.

7

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

8

1254032C1

STABILIZER

2шт.

9

1254033C1

TUBE

1шт.

10

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

11

373025R91

PIN ASSY.

PIN, quick attachable snap

1шт.
